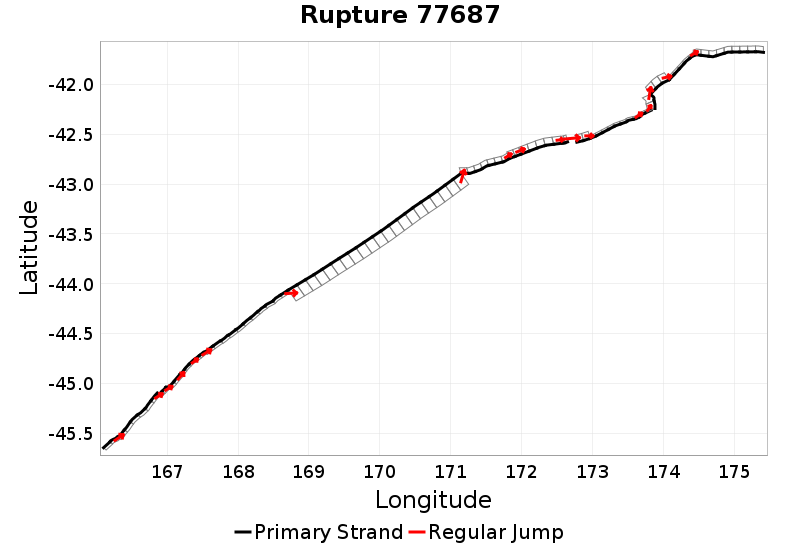

Rupture 77687
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 904.2 | 8.3 | 96 | 19 | 19,340 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10.4 | 14.3 | 1 | 35 | -9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 360 | 5 | 855.6 | 1.7995898E-10 |
Text representation:
[23:122,123][22:115,114,113,112,111,110][20:106,107][13:55,56][14:57,58,59][16:63,62][17:64,65,66,67,68,69,70,71,72,73,74][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][203:826,827][202:825,824,823,822,821][204:829,828][199:815,816][198:814,813,812,811,810,809,808,807][205:830,831][459:1807,1808][249:994,993,992][367:1464,1463,1462,1461,1460][61:298,297,296,295,294,293,292,291,290]
Fault section list. First section listed is South West relative to the last section.
- Alpine: Resolution - Five Fingers
- 122, 123 (jump to 115, 0.9km)
- Alpine: Resolution - Dagg
- 115, 114, 113, 112, 111, 110 (jump to 106, 2.6km)
- Alpine: Nancy
- 106, 107 (jump to 55, 0km)
- Alpine: Caswell
- 55, 56 (jump to 57, 0km)
- Alpine: Caswell - South George
- 57, 58, 59 (jump to 63, 0km)
- Alpine: George seaward
- 63, 62 (jump to 64, 0km)
- Alpine: George to Jacksons
- 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74 (jump to 75, 0km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 826, 0km)
- Hope: Hurunui
- 826, 827 (jump to 825, 0km)
- Hope: Hope River
- 825, 824, 823, 822, 821 (jump to 829, 0km)
- Hope: Kakapo-2-Hamner
- 829, 828 (jump to 815, 10.4km)
- Hope: Hamner SE
- 815, 816 (jump to 814, 0km)
- Hope: Conway
- 814, 813, 812, 811, 810, 809, 808, 807 (jump to 830, 0km)
- Hope: Seaward
- 830, 831 (jump to 1807, 0.2km)
- Papatea
- 1807, 1808 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 298, 0.2km)
- BooBoo
- 298, 297, 296, 295, 294, 293, 292, 291, 290
