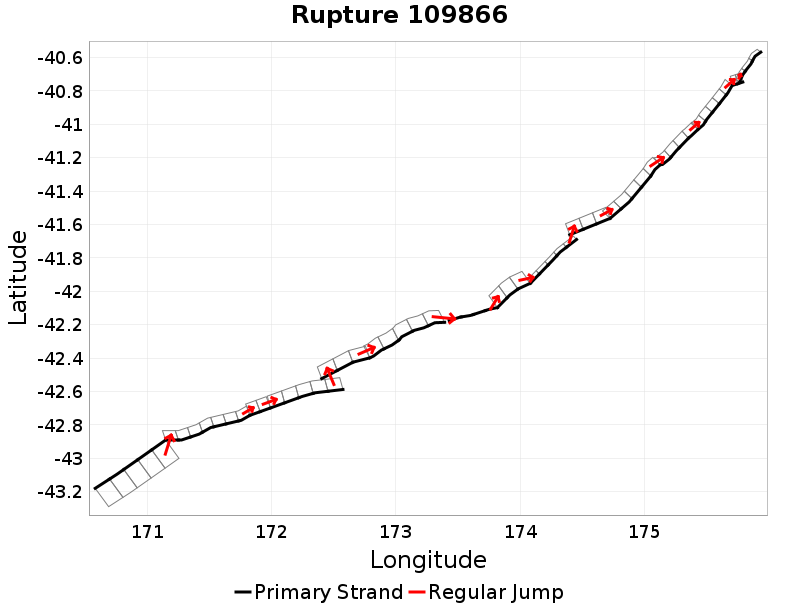

Rupture 109866
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 556.2 | 8 | 61 | 15 | 11,882.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.2 | 16.6 | 1 | 26.1 | -12.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 250 | 6 | 876.6 | 1.07374415E-10 |
Text representation:
[18:91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][203:826,827][202:825,824,823,822,821][96:459,458,457][94:446,447,448,449,450][143:612,611,610,609][249:994,993,992][367:1464,1463,1462,1461,1460][653:2517,2516,2515][650:2501,2502,2503,2504,2505][651:2506,2507,2508,2509][652:2510,2511,2512,2513,2514][113:509,510][443:1731,1732,1733]
Fault section list. First section listed is South West relative to the last section.
- Alpine: Jacksons to Kaniere
- 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 826, 0km)
- Hope: Hurunui
- 826, 827 (jump to 825, 0km)
- Hope: Hope River
- 825, 824, 823, 822, 821 (jump to 459, 8.2km)
- Clarence: Southwest
- 459, 458, 457 (jump to 446, 0km)
- Clarence: Central
- 446, 447, 448, 449, 450 (jump to 612, 3.2km)
- Fidget
- 612, 611, 610, 609 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 2517, 4.6km)
- Wairarapa: Needles
- 2517, 2516, 2515 (jump to 2501, 0km)
- Wairarapa: 1
- 2501, 2502, 2503, 2504, 2505 (jump to 2506, 0km)
- Wairarapa: 2
- 2506, 2507, 2508, 2509 (jump to 2510, 0km)
- Wairarapa: 3
- 2510, 2511, 2512, 2513, 2514 (jump to 509, 0.5km)
- Dreyers Rock
- 509, 510 (jump to 1731, 0.1km)
- Pa Valley
- 1731, 1732, 1733
