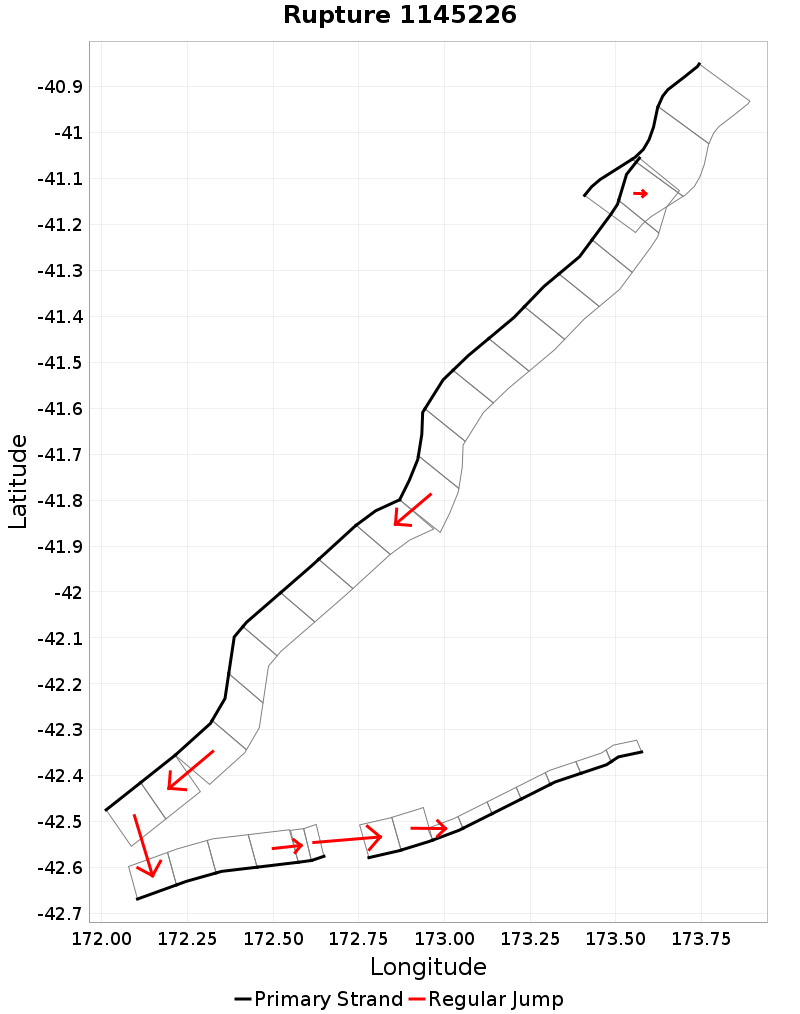

Rupture 1145226
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 372 | 7.9 | 36 | 8 | 9,085.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10.4 | 16.7 | 1.5 | 128.4 | -48.2 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 180 | 2 | 719.2 | 3.9630253E-5 |
Text representation:
[641:2458,2457,2456][690:2650,2651,2652,2653,2654,2655,2656,2657,2658][24:130,129,128,127,126,125,124][19:96,97][202:824,823,822,821][204:829,828][199:815,816][198:814,813,812,811,810,809,808]
Fault section list. First section listed is North East relative to the last section.
- Waimea Offshore
- 2458, 2457, 2456 (jump to 2650, 0.8km)
- Whangamoa
- 2650, 2651, 2652, 2653, 2654, 2655, 2656, 2657, 2658 (jump to 130, 0km)
- Alpine: Springs Junction to Tophouse
- 130, 129, 128, 127, 126, 125, 124 (jump to 96, 0km)
- Alpine: Kaniere to Springs Junction
- 96, 97 (jump to 824, 5.5km)
- Hope: Hope River
- 824, 823, 822, 821 (jump to 829, 0km)
- Hope: Kakapo-2-Hamner
- 829, 828 (jump to 815, 10.4km)
- Hope: Hamner SE
- 815, 816 (jump to 814, 0km)
- Hope: Conway
- 814, 813, 812, 811, 810, 809, 808
