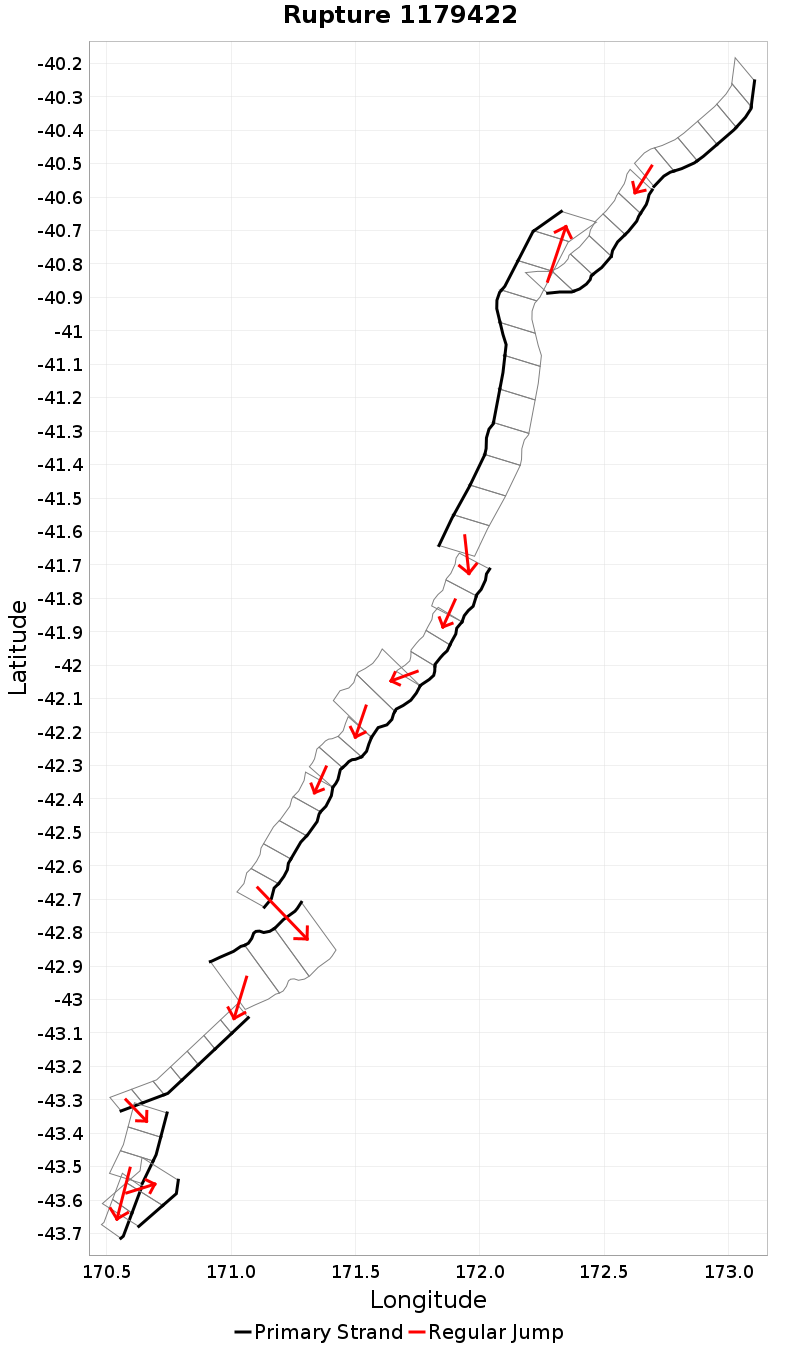

Rupture 1179422
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 524.4 | 8 | 55 | 13 | 11,553.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 7.4 | 17.8 | 1.2 | 85.6 | -83.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 140 | 2 | 1,640.8 | 3.686194E-7 |
Text representation:
[668:2568,2569,2570,2571,2572,2573][667:2562,2563,2564,2565,2566,2567][270:1099,1098,1097,1096,1095,1094,1093,1092,1091,1090,1089][222:907,906][307:1242,1243,1244][305:1236,1235][308:1247,1246,1245][306:1241,1240,1239,1238,1237][193:790,789,788][297:1196,1197,1198,1199,1200,1201,1202][619:2384,2385,2386][289:1171,1172][610:2344,2345]
Fault section list. First section listed is North East relative to the last section.
- Wakamarama Offshore
- 2568, 2569, 2570, 2571, 2572, 2573 (jump to 2562, 1.3km)
- Wakamarama
- 2562, 2563, 2564, 2565, 2566, 2567 (jump to 1099, 0.4km)
- Kongahau
- 1099, 1098, 1097, 1096, 1095, 1094, 1093, 1092, 1091, 1090, 1089 (jump to 907, 0.9km)
- Inangahua
- 907, 906 (jump to 1242, 0km)
- Maimai: North
- 1242, 1243, 1244 (jump to 1236, 0km)
- Maimai
- 1236, 1235 (jump to 1247, 0.1km)
- Maimai: South
- 1247, 1246, 1245 (jump to 1241, 0km)
- Maimai: Brunner Anticline
- 1241, 1240, 1239, 1238, 1237 (jump to 790, 7.4km)
- Hohonu South
- 790, 789, 788 (jump to 1196, 1.2km)
- Lord Range
- 1196, 1197, 1198, 1199, 1200, 1201, 1202 (jump to 2384, 5.4km)
- Veil Stream
- 2384, 2385, 2386 (jump to 1171, 1.1km)
- Lilybank
- 1171, 1172 (jump to 2344, 0.1km)
- Two Thumb Stream
- 2344, 2345
