Rupture 1194254
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 413 | 7.9 | 40 | 10 | 9,792.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.6 | 20.4 | 1 | 14 | 9.7 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 110 | 1 | 536.7 | 1.2558386E-4 |
Text representation:
[678:2601,2600,2599,2598][338:1351,1352,1353,1354,1355][532:2072,2073,2074,2075][533:2080,2079,2078,2077,2076][643:2470,2471][688:2642,2643,2644,2645,2646][687:2641,2640,2639,2638,2637,2636,2635,2634][700:2699,2700,2701][411:1616,1617][572:2235,2234]

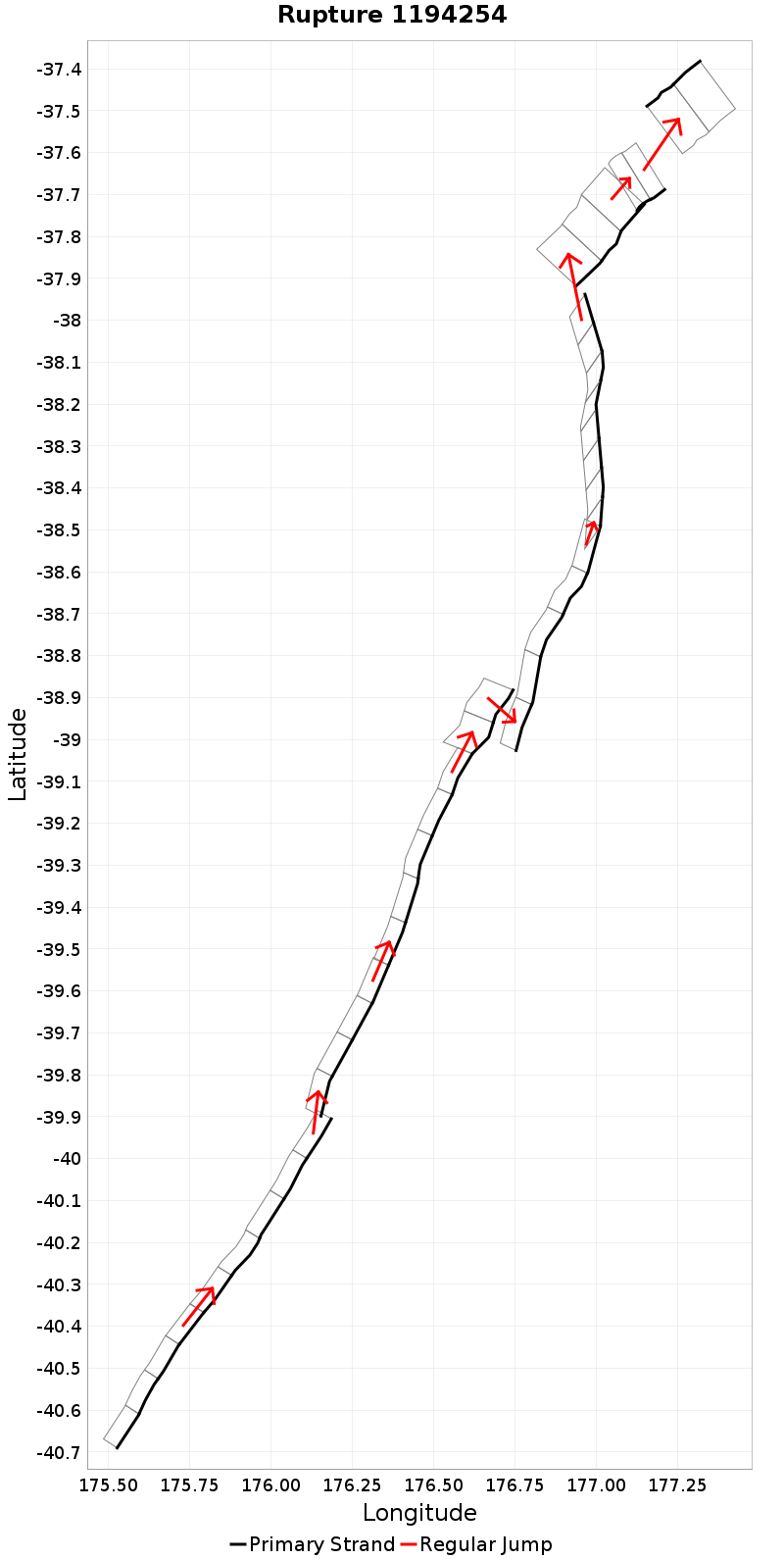

Fault section list. First section listed is South West relative to the last section.
- Wellington: Pahiatua
- 2601, 2600, 2599, 2598 (jump to 1351, 0km)
- Mohaka: South
- 1351, 1352, 1353, 1354, 1355 (jump to 2072, 2.7km)
- Ruahine: Central
- 2072, 2073, 2074, 2075 (jump to 2080, 0km)
- Ruahine: North
- 2080, 2079, 2078, 2077, 2076 (jump to 2470, 0km)
- Waiohau: South
- 2470, 2471 (jump to 2642, 5.7km)
- Whakatane: South
- 2642, 2643, 2644, 2645, 2646 (jump to 2641, 0km)
- Whakatane: North
- 2641, 2640, 2639, 2638, 2637, 2636, 2635, 2634 (jump to 2699, 3.3km)
- White Island 1
- 2699, 2700, 2701 (jump to 1616, 0.2km)
- Ohiwa 1
- 1616, 1617 (jump to 2235, 8.6km)
- Te Arawa 1
- 2235, 2234
