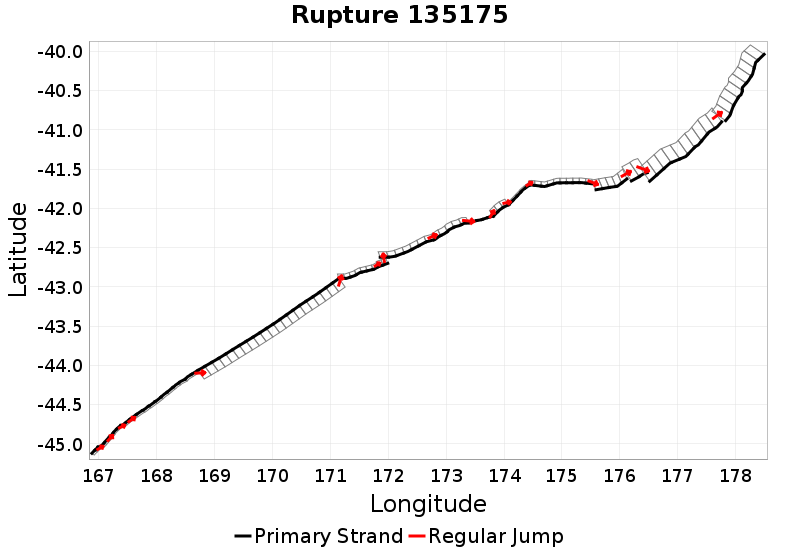

Rupture 135175
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 1,153 | 8.4 | 110 | 18 | 26,806.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.3 | 20.2 | 1 | 46.6 | -31.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 300 | 6 | 1,258.2 | 5.0290687E-12 |
Text representation:
[20:106,107][13:55,56][14:57,58,59][15:60,61][17:64,65,66,67,68,69,70,71,72,73,74][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][203:826,827][96:463,462,461,460,459,458,457][94:446,447,448,449,450][143:612,611,610,609][249:994,993,992][367:1464,1463,1462,1461,1460][61:298,297,296,295,294,293,292,291,290,289][446:1746,1747,1748,1749,1750][487:1931,1930][27:156,155,154,153,152,151,150,149,148,147][5:20,19,18,17,16,15,14,13,12]
Fault section list. First section listed is South West relative to the last section.
- Alpine: Nancy
- 106, 107 (jump to 55, 0km)
- Alpine: Caswell
- 55, 56 (jump to 57, 0km)
- Alpine: Caswell - South George
- 57, 58, 59 (jump to 60, 0km)
- Alpine: George landward
- 60, 61 (jump to 64, 0km)
- Alpine: George to Jacksons
- 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74 (jump to 75, 0km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 826, 0km)
- Hope: Hurunui
- 826, 827 (jump to 463, 8.3km)
- Clarence: Southwest
- 463, 462, 461, 460, 459, 458, 457 (jump to 446, 0km)
- Clarence: Central
- 446, 447, 448, 449, 450 (jump to 612, 3.2km)
- Fidget
- 612, 611, 610, 609 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 298, 0.2km)
- BooBoo
- 298, 297, 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1746, 0.3km)
- Pahaua
- 1746, 1747, 1748, 1749, 1750 (jump to 1931, 1km)
- Pukeroro 2
- 1931, 1930 (jump to 156, 5.7km)
- Aorangi Trough
- 156, 155, 154, 153, 152, 151, 150, 149, 148, 147 (jump to 20, 1.5km)
- Akitio Ridge
- 20, 19, 18, 17, 16, 15, 14, 13, 12
