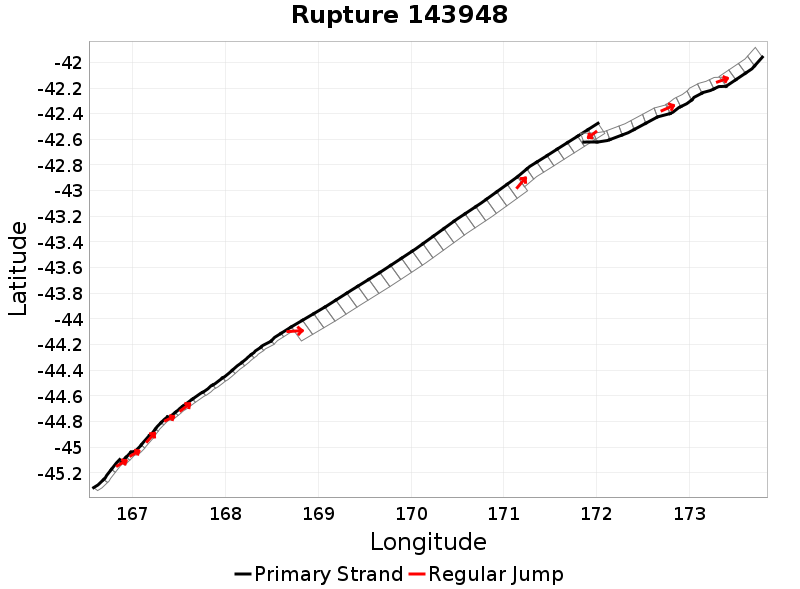

Rupture 143948
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 721.2 | 8.2 | 68 | 11 | 16,443.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 2.6 | 2.9 | 1 | 31.8 | -12.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 110 | 3 | 656.8 | 7.960162E-6 |
Text representation:
[22:112,111,110][20:106,107][13:55,56][14:57,58,59][15:60,61][17:64,65,66,67,68,69,70,71,72,73,74][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][19:105,104,103,102,101,100,99,98][96:463,462,461,460,459,458,457][94:446,447,448,449,450][95:456,455,454,453]
Fault section list. First section listed is South West relative to the last section.
- Alpine: Resolution - Dagg
- 112, 111, 110 (jump to 106, 2.6km)
- Alpine: Nancy
- 106, 107 (jump to 55, 0km)
- Alpine: Caswell
- 55, 56 (jump to 57, 0km)
- Alpine: Caswell - South George
- 57, 58, 59 (jump to 60, 0km)
- Alpine: George landward
- 60, 61 (jump to 64, 0km)
- Alpine: George to Jacksons
- 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74 (jump to 75, 0km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 105, 0km)
- Alpine: Kaniere to Springs Junction
- 105, 104, 103, 102, 101, 100, 99, 98 (jump to 463, 0.2km)
- Clarence: Southwest
- 463, 462, 461, 460, 459, 458, 457 (jump to 446, 0km)
- Clarence: Central
- 446, 447, 448, 449, 450 (jump to 456, 0.1km)
- Clarence: Northeast
- 456, 455, 454, 453
