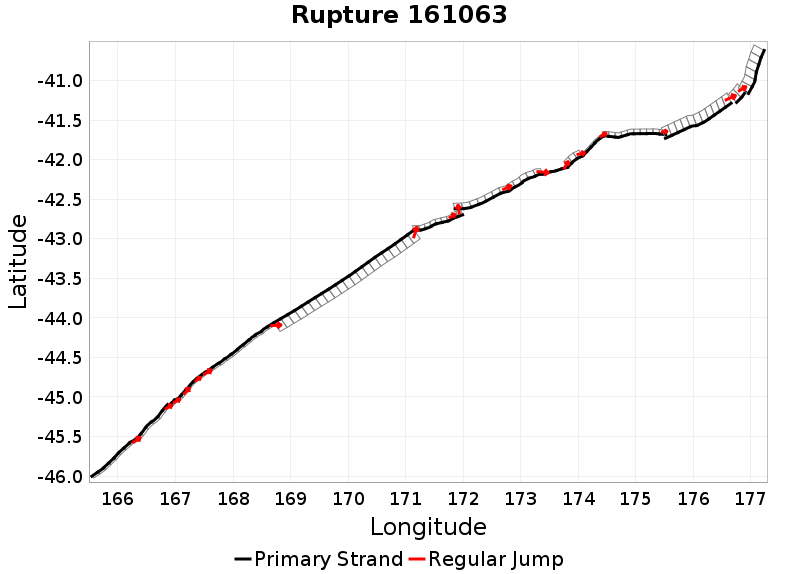

Rupture 161063
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 1,167.7 | 8.4 | 117 | 19 | 25,569.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.3 | 20.7 | 1 | 48.7 | -16.1 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 340 | 8 | 1,111.7 | 3.5869267E-14 |
Text representation:
[23:116,117,118,119,120,121,122,123][22:115,114,113,112,111,110][20:106,107][13:55,56][14:57,58,59][16:63,62][17:64,65,66,67,68,69,70,71,72,73,74][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][203:826,827][96:463,462,461,460,459,458,457][94:446,447,448,449,450][143:612,611,610,609][249:994,993,992][367:1464,1463,1462,1461,1460][61:298,297,296,295,294,293,292,291,290,289][426:1674,1675,1676,1677,1678,1679,1680,1681,1682,1683,1684][618:2383,2382][615:2370,2371,2372,2373,2374,2375]
Fault section list. First section listed is South West relative to the last section.
- Alpine: Resolution - Five Fingers
- 116, 117, 118, 119, 120, 121, 122, 123 (jump to 115, 0.9km)
- Alpine: Resolution - Dagg
- 115, 114, 113, 112, 111, 110 (jump to 106, 2.6km)
- Alpine: Nancy
- 106, 107 (jump to 55, 0km)
- Alpine: Caswell
- 55, 56 (jump to 57, 0km)
- Alpine: Caswell - South George
- 57, 58, 59 (jump to 63, 0km)
- Alpine: George seaward
- 63, 62 (jump to 64, 0km)
- Alpine: George to Jacksons
- 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74 (jump to 75, 0km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 826, 0km)
- Hope: Hurunui
- 826, 827 (jump to 463, 8.3km)
- Clarence: Southwest
- 463, 462, 461, 460, 459, 458, 457 (jump to 446, 0km)
- Clarence: Central
- 446, 447, 448, 449, 450 (jump to 612, 3.2km)
- Fidget
- 612, 611, 610, 609 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 298, 0.2km)
- BooBoo
- 298, 297, 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1674, 0.2km)
- Opouawe - Uruti
- 1674, 1675, 1676, 1677, 1678, 1679, 1680, 1681, 1682, 1683, 1684 (jump to 2383, 2.4km)
- Uruti Ridge 2
- 2383, 2382 (jump to 2370, 2.9km)
- Uruti East - PorWest 1
- 2370, 2371, 2372, 2373, 2374, 2375
