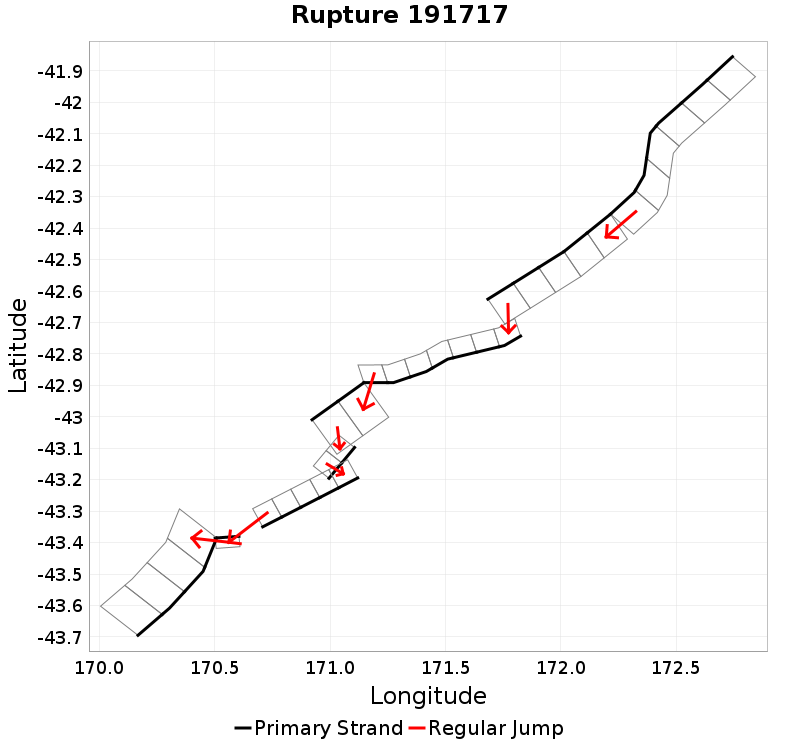

Rupture 191717
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 312.4 | 7.8 | 32 | 8 | 6,894.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 9 | 13.7 | 1.1 | 19.1 | -35.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 240 | 2 | 837.2 | 7.9260506E-5 |
Text representation:
[24:129,128,127,126,125,124][19:96,97,98,99,100][251:1013,1012,1011,1010,1009,1008,1007][18:95,94][326:1306,1307][399:1582,1581,1580,1579,1578][171:709][363:1447,1448,1449,1450]
Fault section list. First section listed is North East relative to the last section.
- Alpine: Springs Junction to Tophouse
- 129, 128, 127, 126, 125, 124 (jump to 96, 0km)
- Alpine: Kaniere to Springs Junction
- 96, 97, 98, 99, 100 (jump to 1013, 0.5km)
- Kelly
- 1013, 1012, 1011, 1010, 1009, 1008, 1007 (jump to 95, 0km)
- Alpine: Jacksons to Kaniere
- 95, 94 (jump to 1306, 0.3km)
- Mathias
- 1306, 1307 (jump to 1582, 3.6km)
- Observation
- 1582, 1581, 1580, 1579, 1578 (jump to 709, 9km)
- Gunn Glacier
- 709 (jump to 1447, 0.4km)
- Murchison 1 - Ice Lake
- 1447, 1448, 1449, 1450
