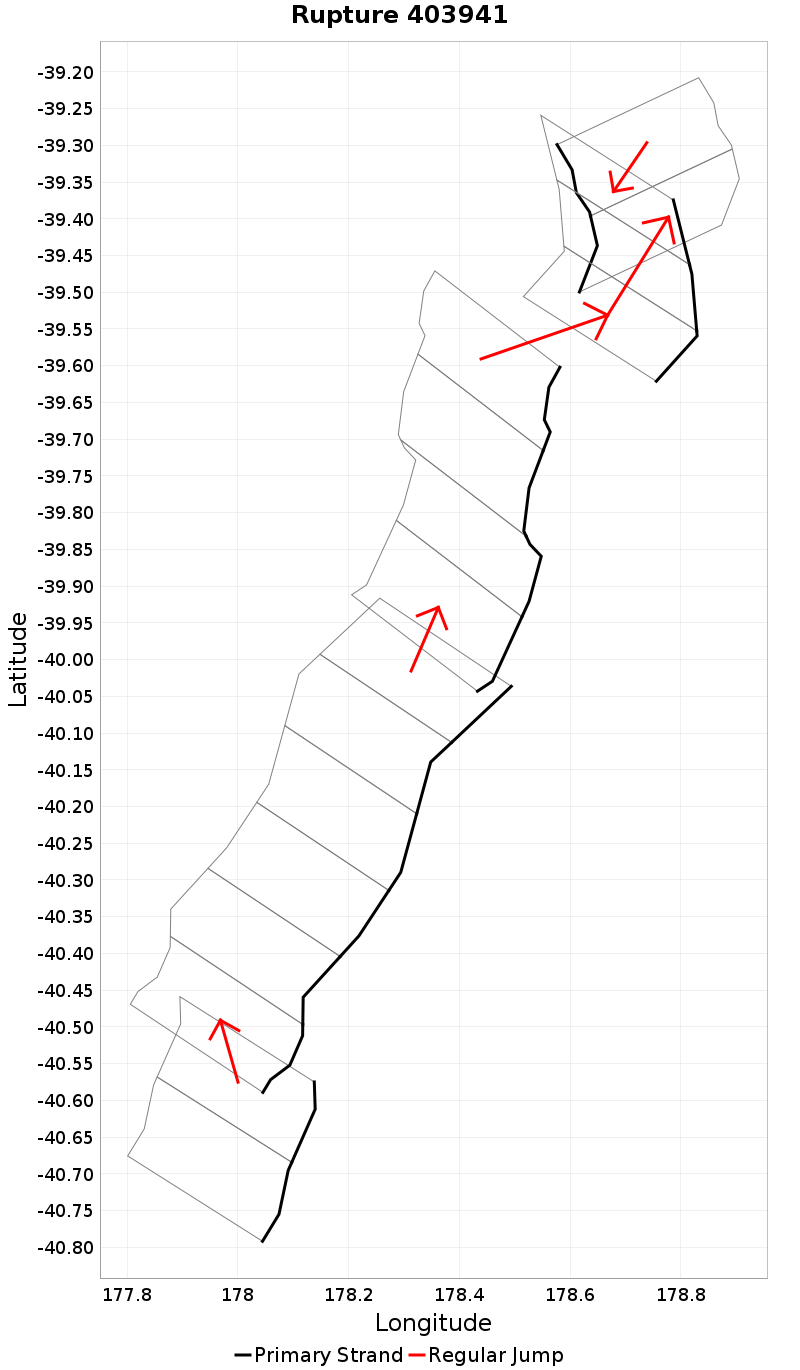

Rupture 403941
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 209.5 | 7.7 | 17 | 6 | 5,866.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.4 | 15.9 | 1.2 | 39.7 | -90 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 0.0 | 0.0 | 530.2 | 6.170077E-4 |
Text representation:
[135:578,577][5:17,16,15,14,13,12][528:2055,2054,2053,2052][452:1779][577:2246,2247][452:1777,1778]
Fault section list. First section listed is South West relative to the last section.
- F16 - Central
- 578, 577 (jump to 17, 2.3km)
- Akitio Ridge
- 17, 16, 15, 14, 13, 12 (jump to 2055, 1.4km)
- Rock Garden - Ritchie East
- 2055, 2054, 2053, 2052 (jump to 1779, 8.4km)
- Pakupaku Ridge East
- 1779 (jump to 2246, 3.7km)
- Te Kapu Bank
- 2246, 2247 (jump to 1777, 0.1km)
- Pakupaku Ridge East
- 1777, 1778
