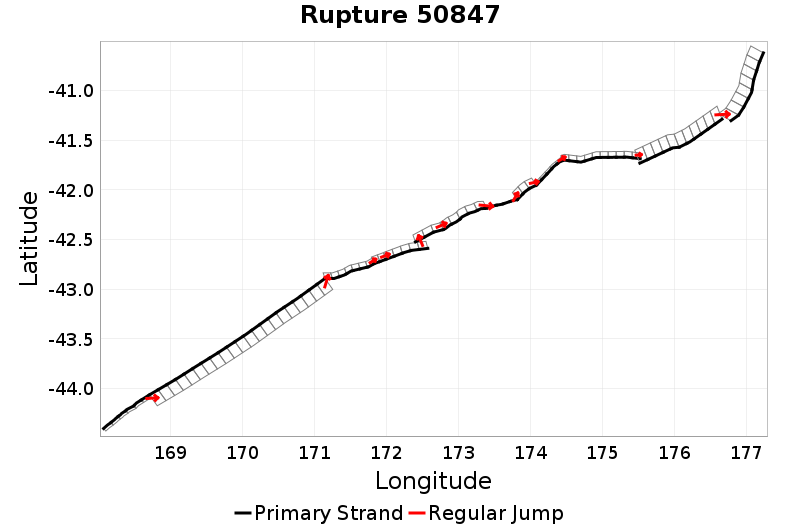

Rupture 50847
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 903.4 | 8.3 | 90 | 13 | 19,703.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.2 | 17.3 | 1.1 | 43 | -23.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 300 | 6 | 942.9 | 1.9432435E-10 |
Text representation:
[17:69,70,71,72,73,74][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][203:826,827][202:825,824,823,822,821][96:459,458,457][94:446,447,448,449,450][143:612,611,610,609][249:994,993,992][367:1464,1463,1462,1461,1460][61:298,297,296,295,294,293,292,291,290,289][426:1674,1675,1676,1677,1678,1679,1680,1681,1682,1683,1684][615:2368,2369,2370,2371,2372,2373,2374,2375]
Fault section list. First section listed is South West relative to the last section.
- Alpine: George to Jacksons
- 69, 70, 71, 72, 73, 74 (jump to 75, 0km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 826, 0km)
- Hope: Hurunui
- 826, 827 (jump to 825, 0km)
- Hope: Hope River
- 825, 824, 823, 822, 821 (jump to 459, 8.2km)
- Clarence: Southwest
- 459, 458, 457 (jump to 446, 0km)
- Clarence: Central
- 446, 447, 448, 449, 450 (jump to 612, 3.2km)
- Fidget
- 612, 611, 610, 609 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 298, 0.2km)
- BooBoo
- 298, 297, 296, 295, 294, 293, 292, 291, 290, 289 (jump to 1674, 0.2km)
- Opouawe - Uruti
- 1674, 1675, 1676, 1677, 1678, 1679, 1680, 1681, 1682, 1683, 1684 (jump to 2368, 5.5km)
- Uruti East - PorWest 1
- 2368, 2369, 2370, 2371, 2372, 2373, 2374, 2375
