Rupture 632847
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 475.5 | 8.1 | 40 | 8 | 12,555.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6 | 16.8 | 1.2 | 66.7 | -87.4 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 45 | 1 | 1,112.6 | 2.3716813E-4 |
Text representation:
[250:999,998,997,996,995][448:1764,1763,1762,1761][164:690,689,688,687,686,685][488:1932,1933,1934][27:156,155,154,153,152,151,150,149,148,147][135:580,579,578,577][5:17,16,15,14,13,12][529:2064,2063]

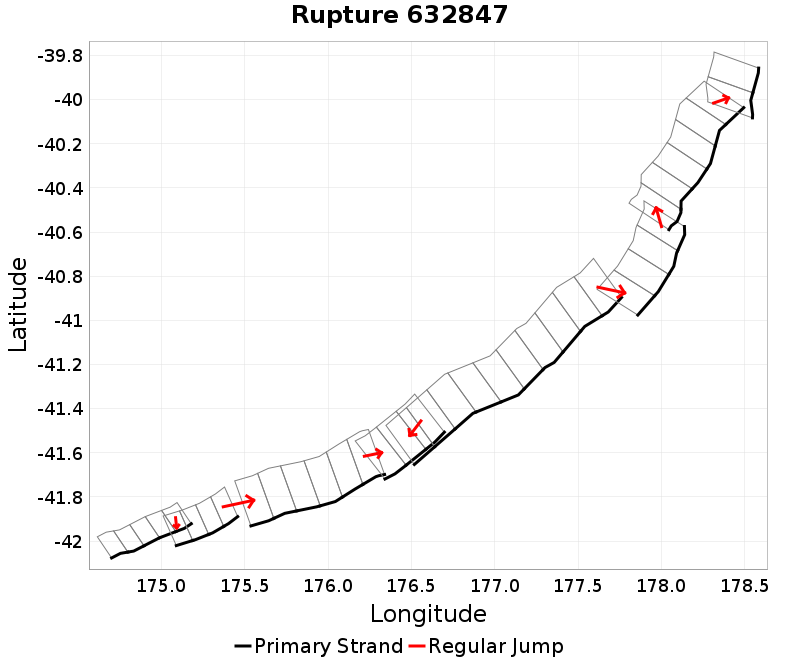

Fault section list. First section listed is South West relative to the last section.
- Kekerengu Bank
- 999, 998, 997, 996, 995 (jump to 1764, 0.2km)
- Pahaua SE2
- 1764, 1763, 1762, 1761 (jump to 690, 5.7km)
- Glendhu Ridge
- 690, 689, 688, 687, 686, 685 (jump to 1932, 1km)
- Pukeroro Ridge
- 1932, 1933, 1934 (jump to 156, 1km)
- Aorangi Trough
- 156, 155, 154, 153, 152, 151, 150, 149, 148, 147 (jump to 580, 6km)
- F16 - Central
- 580, 579, 578, 577 (jump to 17, 2.3km)
- Akitio Ridge
- 17, 16, 15, 14, 13, 12 (jump to 2064, 0.7km)
- Rock Garden - Ritchie East 1
- 2064, 2063
