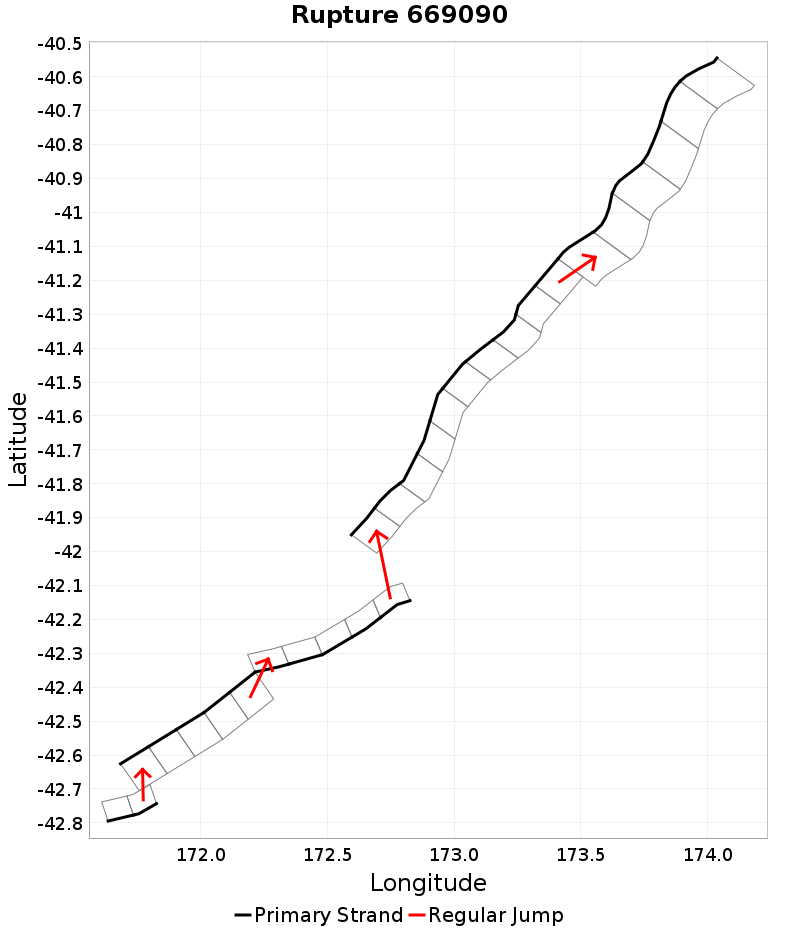

Rupture 669090
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 329.8 | 7.9 | 28 | 5 | 8,319 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 12 | 12.5 | 1 | 9.8 | -70.4 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 140 | 2 | 545.2 | 5.24642E-4 |
Text representation:
[251:1012,1013][19:100,99,98,97,96][41:225,224,223,222,221][149:629,630,631,632,633,634,635,636,637,638][641:2456,2457,2458,2459,2460,2461]
Fault section list. First section listed is South West relative to the last section.
- Kelly
- 1012, 1013 (jump to 100, 0.5km)
- Alpine: Kaniere to Springs Junction
- 100, 99, 98, 97, 96 (jump to 225, 0km)
- Awatere: Southwest
- 225, 224, 223, 222, 221 (jump to 629, 12km)
- Flaxmore - Waimea - Tahunanui
- 629, 630, 631, 632, 633, 634, 635, 636, 637, 638 (jump to 2456, 0km)
- Waimea Offshore
- 2456, 2457, 2458, 2459, 2460, 2461
