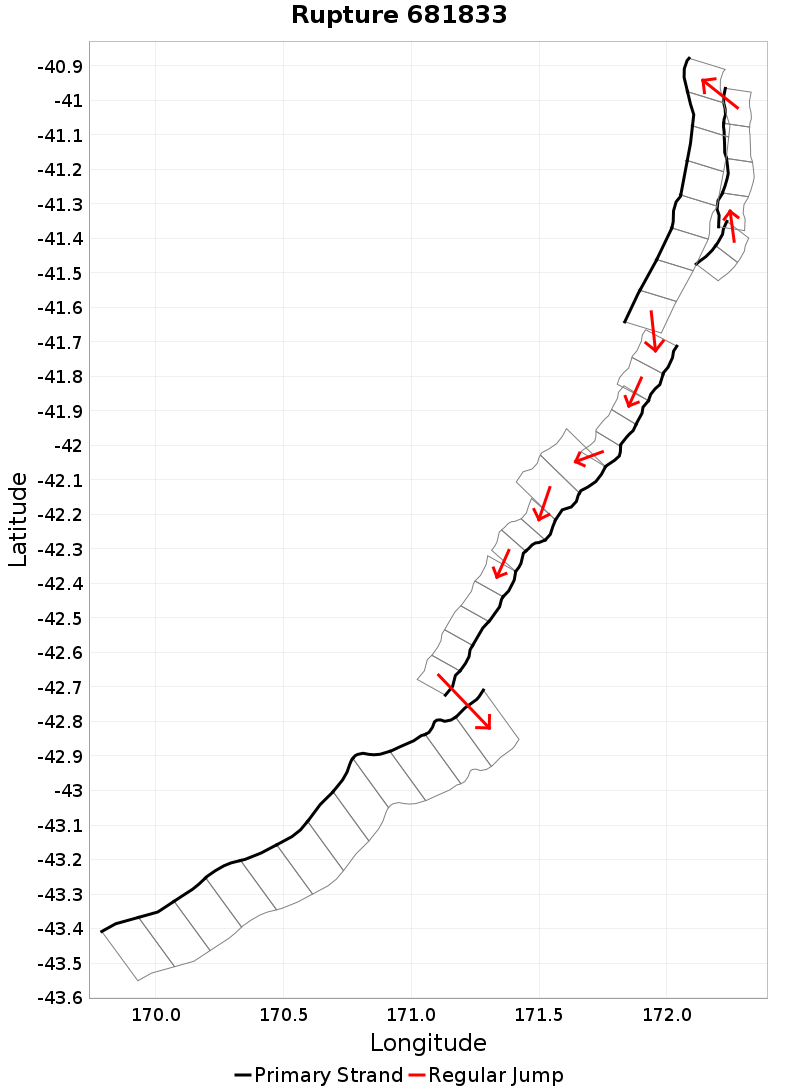

Rupture 681833
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 444.9 | 8 | 41 | 9 | 10,694.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 7.4 | 15.4 | 1.5 | 148.7 | -82.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 20 | 1 | 919 | 8.867097E-5 |
Text representation:
[269:1087,1088][268:1086,1085,1084,1083][270:1096,1095,1094,1093,1092,1091,1090,1089][222:907,906][307:1242,1243,1244][305:1236,1235][308:1247,1246,1245][306:1241,1240,1239,1238,1237][193:790,789,788,787,786,785,784,783,782,781,780,779]
Fault section list. First section listed is North East relative to the last section.
- Kohaihai South
- 1087, 1088 (jump to 1086, 1.7km)
- Kohaihai
- 1086, 1085, 1084, 1083 (jump to 1096, 5.4km)
- Kongahau
- 1096, 1095, 1094, 1093, 1092, 1091, 1090, 1089 (jump to 907, 0.9km)
- Inangahua
- 907, 906 (jump to 1242, 0km)
- Maimai: North
- 1242, 1243, 1244 (jump to 1236, 0km)
- Maimai
- 1236, 1235 (jump to 1247, 0.1km)
- Maimai: South
- 1247, 1246, 1245 (jump to 1241, 0km)
- Maimai: Brunner Anticline
- 1241, 1240, 1239, 1238, 1237 (jump to 790, 7.4km)
- Hohonu South
- 790, 789, 788, 787, 786, 785, 784, 783, 782, 781, 780, 779
