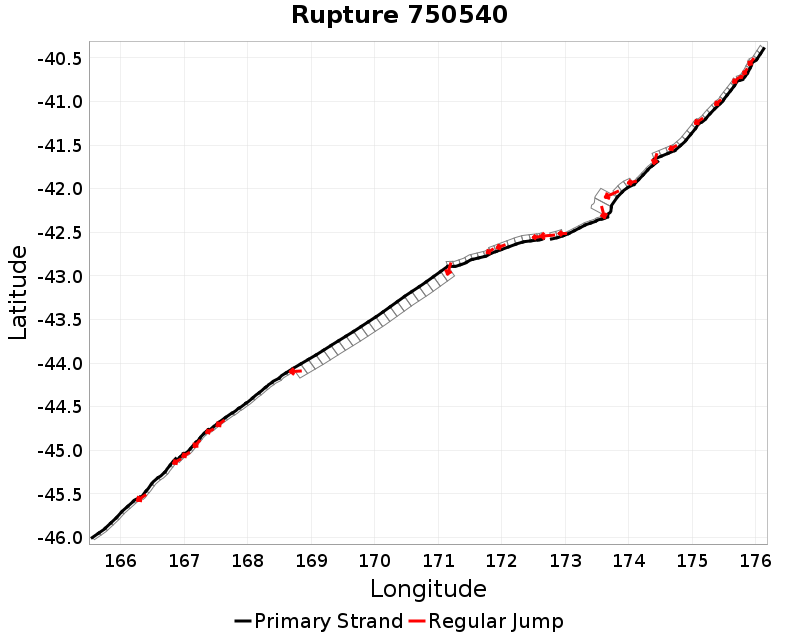

Rupture 750540
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 1,083 | 8.3 | 117 | 25 | 23,399.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10.4 | 19.3 | 1 | 22.8 | -12.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 360 | 7 | 1,099.1 | 1.8604747E-13 |
Text representation:
[309:1250,1249,1248][11:51,52][12:53,54][113:510,509][652:2514,2513,2512,2511,2510][651:2509,2508,2507,2506][650:2505,2504,2503,2502,2501][653:2515,2516,2517][367:1460,1461,1462,1463,1464][249:992,993,994][227:920,919][198:807,808,809,810,811,812,813,814][199:816,815][204:828,829][202:821,822,823,824,825][203:827,826][251:1013,1012,1011,1010,1009,1008,1007][18:95,94,93,92,91,90,89,88,87,86,85,84,83,82,81,80,79,78,77,76,75][17:74,73,72,71,70,69,68,67,66,65,64][15:61,60][14:59,58,57][13:56,55][20:107,106][22:110,111,112,113,114,115][23:123,122,121,120,119,118,117,116]
Fault section list. First section listed is North East relative to the last section.
- Makuri - Waewaepa
- 1250, 1249, 1248 (jump to 51, 0.3km)
- Alfredton North
- 51, 52 (jump to 53, 0km)
- Alfredton South
- 53, 54 (jump to 510, 0km)
- Dreyers Rock
- 510, 509 (jump to 2514, 0.5km)
- Wairarapa: 3
- 2514, 2513, 2512, 2511, 2510 (jump to 2509, 0km)
- Wairarapa: 2
- 2509, 2508, 2507, 2506 (jump to 2505, 0km)
- Wairarapa: 1
- 2505, 2504, 2503, 2502, 2501 (jump to 2515, 0km)
- Wairarapa: Needles
- 2515, 2516, 2517 (jump to 1460, 4.6km)
- Needles
- 1460, 1461, 1462, 1463, 1464 (jump to 992, 0km)
- Kekerengu 1
- 992, 993, 994 (jump to 920, 0km)
- Jordan
- 920, 919 (jump to 807, 0km)
- Hope: Conway
- 807, 808, 809, 810, 811, 812, 813, 814 (jump to 816, 0km)
- Hope: Hamner SE
- 816, 815 (jump to 828, 10.4km)
- Hope: Kakapo-2-Hamner
- 828, 829 (jump to 821, 0km)
- Hope: Hope River
- 821, 822, 823, 824, 825 (jump to 827, 0km)
- Hope: Hurunui
- 827, 826 (jump to 1013, 0km)
- Kelly
- 1013, 1012, 1011, 1010, 1009, 1008, 1007 (jump to 95, 0km)
- Alpine: Jacksons to Kaniere
- 95, 94, 93, 92, 91, 90, 89, 88, 87, 86, 85, 84, 83, 82, 81, 80, 79, 78, 77, 76, 75 (jump to 74, 0km)
- Alpine: George to Jacksons
- 74, 73, 72, 71, 70, 69, 68, 67, 66, 65, 64 (jump to 61, 0km)
- Alpine: George landward
- 61, 60 (jump to 59, 0km)
- Alpine: Caswell - South George
- 59, 58, 57 (jump to 56, 0km)
- Alpine: Caswell
- 56, 55 (jump to 107, 0km)
- Alpine: Nancy
- 107, 106 (jump to 110, 2.6km)
- Alpine: Resolution - Dagg
- 110, 111, 112, 113, 114, 115 (jump to 123, 0.9km)
- Alpine: Resolution - Five Fingers
- 123, 122, 121, 120, 119, 118, 117, 116
