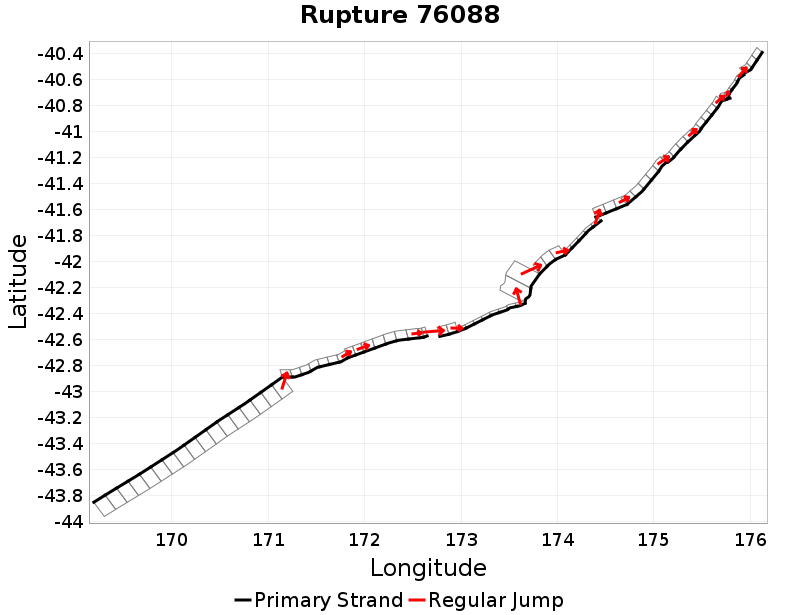

Rupture 76088
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 704.8 | 8.1 | 78 | 17 | 14,974.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10.4 | 17.3 | 1 | 15.5 | -18.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 340 | 6 | 848.5 | 3.8846624E-11 |
Text representation:
[18:79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][203:826,827][202:825,824,823,822,821][204:829,828][199:815,816][198:814,813,812,811,810,809,808,807][227:919,920][249:994,993,992][367:1464,1463,1462,1461,1460][653:2517,2516,2515][650:2501,2502,2503,2504,2505][651:2506,2507,2508,2509][652:2510,2511,2512,2513,2514][113:509,510][443:1731,1732,1733][309:1248,1249,1250]
Fault section list. First section listed is South West relative to the last section.
- Alpine: Jacksons to Kaniere
- 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 826, 0km)
- Hope: Hurunui
- 826, 827 (jump to 825, 0km)
- Hope: Hope River
- 825, 824, 823, 822, 821 (jump to 829, 0km)
- Hope: Kakapo-2-Hamner
- 829, 828 (jump to 815, 10.4km)
- Hope: Hamner SE
- 815, 816 (jump to 814, 0km)
- Hope: Conway
- 814, 813, 812, 811, 810, 809, 808, 807 (jump to 919, 0km)
- Jordan
- 919, 920 (jump to 994, 0km)
- Kekerengu 1
- 994, 993, 992 (jump to 1464, 0km)
- Needles
- 1464, 1463, 1462, 1461, 1460 (jump to 2517, 4.6km)
- Wairarapa: Needles
- 2517, 2516, 2515 (jump to 2501, 0km)
- Wairarapa: 1
- 2501, 2502, 2503, 2504, 2505 (jump to 2506, 0km)
- Wairarapa: 2
- 2506, 2507, 2508, 2509 (jump to 2510, 0km)
- Wairarapa: 3
- 2510, 2511, 2512, 2513, 2514 (jump to 509, 0.5km)
- Dreyers Rock
- 509, 510 (jump to 1731, 0.1km)
- Pa Valley
- 1731, 1732, 1733 (jump to 1248, 1.7km)
- Makuri - Waewaepa
- 1248, 1249, 1250
