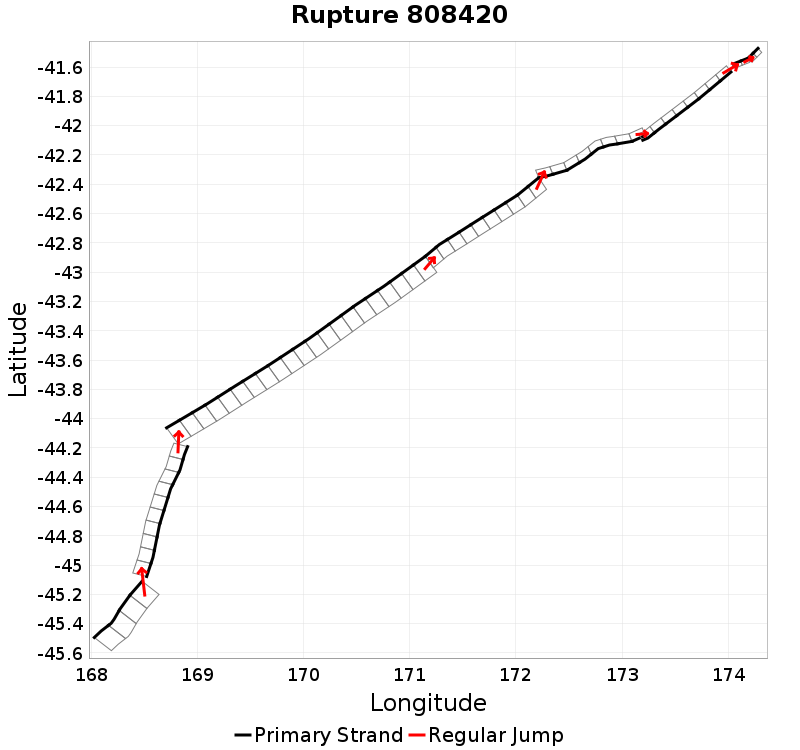

Rupture 808420
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 700.7 | 8.2 | 65 | 8 | 16,421.3 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.7 | 13.3 | 1 | 26.6 | -34.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 120 | 1 | 462.4 | 1.7774168E-4 |
Text representation:
[343:1384,1383,1382,1381][342:1380,1379,1378,1377,1376,1375,1374,1373,1372,1371][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][19:105,104,103,102,101,100,99,98,97,96][41:225,224,223,222,221,220,219,218][39:207,208,209,210,211,212,213,214][621:2390,2389][99:470,469]
Fault section list. First section listed is South West relative to the last section.
- Moonlight South
- 1384, 1383, 1382, 1381 (jump to 1380, 4.7km)
- Moonlight North
- 1380, 1379, 1378, 1377, 1376, 1375, 1374, 1373, 1372, 1371 (jump to 75, 1.5km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 105, 0km)
- Alpine: Kaniere to Springs Junction
- 105, 104, 103, 102, 101, 100, 99, 98, 97, 96 (jump to 225, 0km)
- Awatere: Southwest
- 225, 224, 223, 222, 221, 220, 219, 218 (jump to 207, 2.5km)
- Awatere: Northeast 1
- 207, 208, 209, 210, 211, 212, 213, 214 (jump to 2390, 4.6km)
- Vernon 2
- 2390, 2389 (jump to 470, 0km)
- Cloudy 1
- 470, 469
