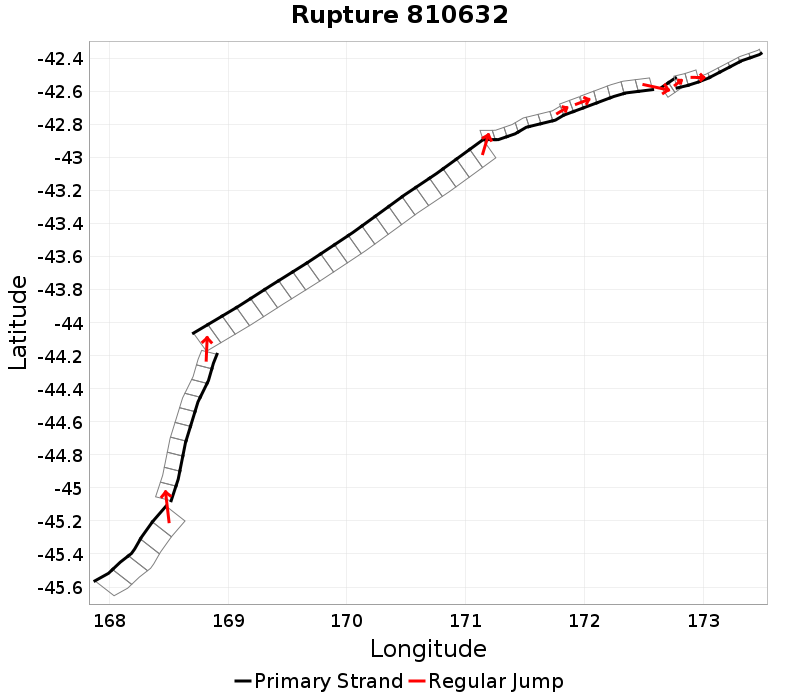

Rupture 810632
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 606.1 | 8.1 | 60 | 9 | 14,080.7 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 12.7 | 1.1 | 33.8 | -30.7 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 150 | 3 | 529.5 | 1.9445242E-6 |
Text representation:
[343:1385,1384,1383,1382,1381][342:1380,1379,1378,1377,1376,1375,1374,1373,1372,1371][18:75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95][251:1007,1008,1009,1010,1011,1012,1013][203:826,827][202:825,824,823,822,821][201:819,820][199:815,816][198:814,813,812,811,810,809]
Fault section list. First section listed is South West relative to the last section.
- Moonlight South
- 1385, 1384, 1383, 1382, 1381 (jump to 1380, 4.7km)
- Moonlight North
- 1380, 1379, 1378, 1377, 1376, 1375, 1374, 1373, 1372, 1371 (jump to 75, 1.5km)
- Alpine: Jacksons to Kaniere
- 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 1007, 0km)
- Kelly
- 1007, 1008, 1009, 1010, 1011, 1012, 1013 (jump to 826, 0km)
- Hope: Hurunui
- 826, 827 (jump to 825, 0km)
- Hope: Hope River
- 825, 824, 823, 822, 821 (jump to 819, 6.3km)
- Hope: Hanmer NW
- 819, 820 (jump to 815, 0.1km)
- Hope: Hamner SE
- 815, 816 (jump to 814, 0km)
- Hope: Conway
- 814, 813, 812, 811, 810, 809
