Rupture 812475
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 495 | 8 | 49 | 12 | 11,454.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 9 | 16.1 | 1.1 | 39.5 | 6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 210 | 8 | 747.1 | 1.1081421E-12 |
Text representation:
[344:1388,1387,1386][433:1707,1708][434:1711,1710,1709][678:2601,2600,2599,2598][338:1351,1352,1353,1354,1355,1356,1357,1358,1359][337:1345,1346,1347,1348,1349,1350][636:2442,2443,2444,2445,2446][635:2441,2440,2439,2438,2437,2436,2435,2434,2433][248:991,990][325:1304][700:2699,2700,2701][686:2633,2632]

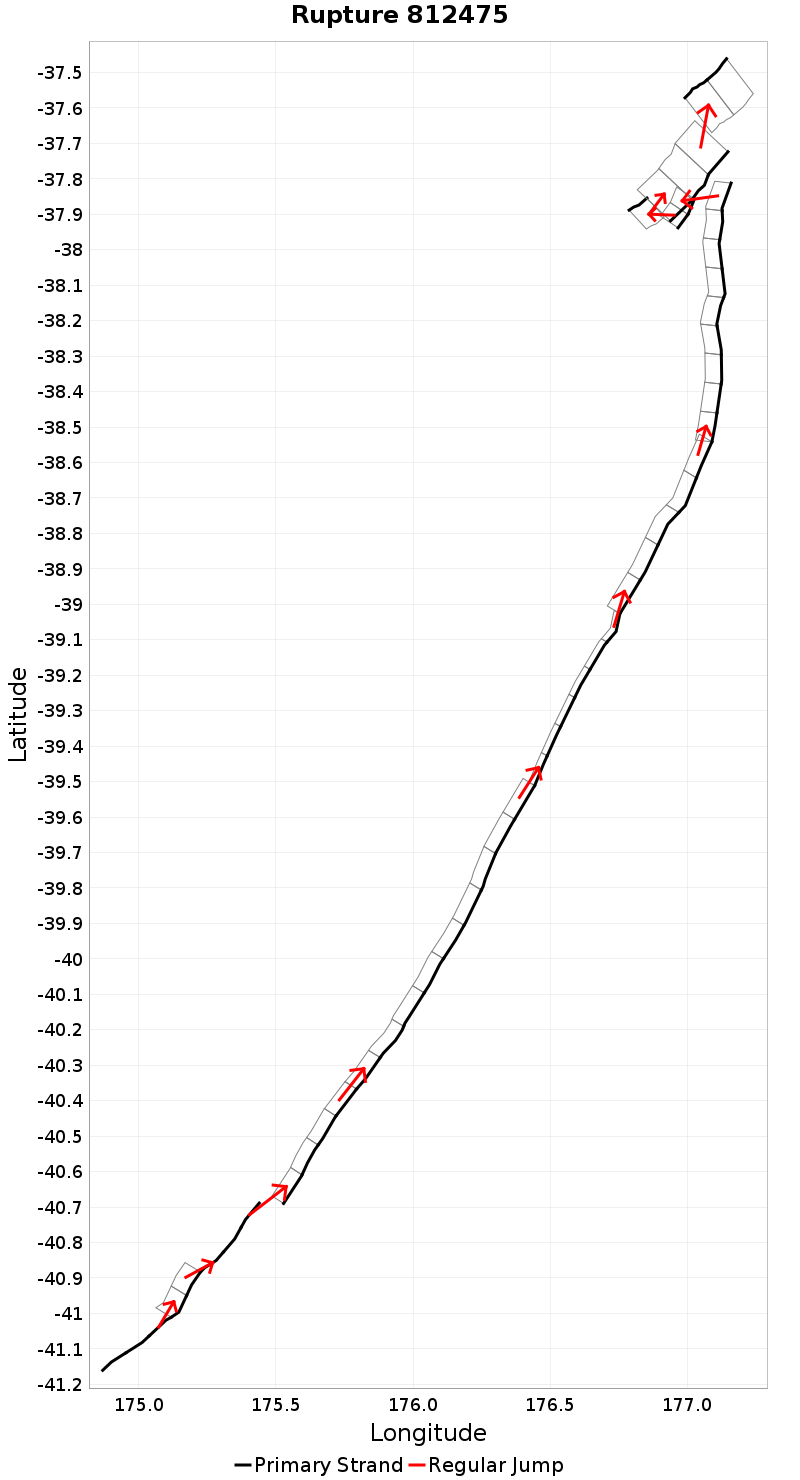

Fault section list. First section listed is South West relative to the last section.
- Moonshine
- 1388, 1387, 1386 (jump to 1707, 0km)
- Otaki Forks: 1
- 1707, 1708 (jump to 1711, 0km)
- Otaki Forks: 2
- 1711, 1710, 1709 (jump to 2601, 4.7km)
- Wellington: Pahiatua
- 2601, 2600, 2599, 2598 (jump to 1351, 0km)
- Mohaka: South
- 1351, 1352, 1353, 1354, 1355, 1356, 1357, 1358, 1359 (jump to 1345, 0km)
- Mohaka: North
- 1345, 1346, 1347, 1348, 1349, 1350 (jump to 2442, 0km)
- Waimana: South
- 2442, 2443, 2444, 2445, 2446 (jump to 2441, 0km)
- Waimana: North
- 2441, 2440, 2439, 2438, 2437, 2436, 2435, 2434, 2433 (jump to 991, 9km)
- Keepa
- 991, 990 (jump to 1304, 0.7km)
- Matata
- 1304 (jump to 2699, 0.2km)
- White Island 1
- 2699, 2700, 2701 (jump to 2633, 1.5km)
- Whakaari 4
- 2633, 2632
