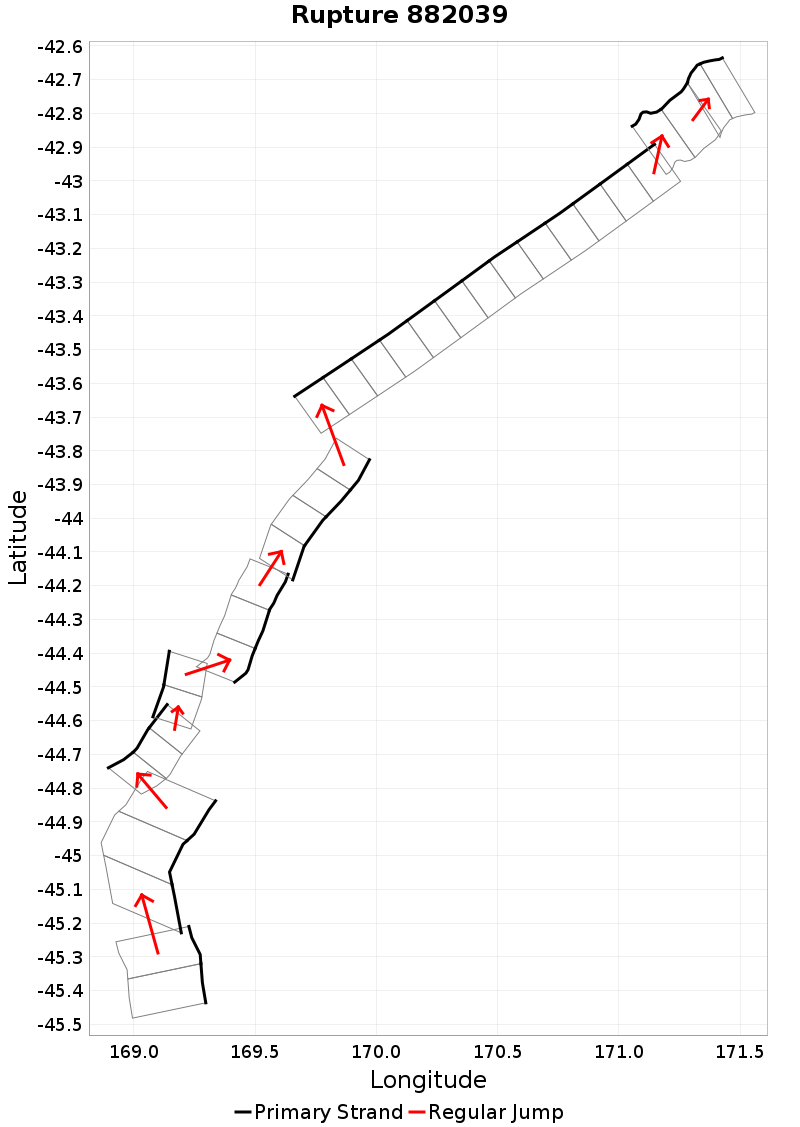

Rupture 882039
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 400.5 | 8 | 34 | 9 | 10,743.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.9 | 13.4 | 1.1 | 45.5 | -57.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 140 | 0.0 | 675.8 | 8.0363546E-4 |
Text representation:
[415:1629,1630][468:1841,1840,1839][346:1392,1393,1394][670:2581,2580][110:497,498,499][208:844,845,846,847][18:83,84,85,86,87,88,89,90,91,92,93,94,95][193:789,790][191:776,775]
Fault section list. First section listed is South West relative to the last section.
- Old Man
- 1629, 1630 (jump to 1841, 1.7km)
- Pisa
- 1841, 1840, 1839 (jump to 1392, 0.1km)
- Motatapu
- 1392, 1393, 1394 (jump to 2581, 1.2km)
- Wanaka
- 2581, 2580 (jump to 497, 0.2km)
- Dingle
- 497, 498, 499 (jump to 844, 1.8km)
- Hopkins
- 844, 845, 846, 847 (jump to 83, 5.9km)
- Alpine: Jacksons to Kaniere
- 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95 (jump to 789, 2.6km)
- Hohonu South
- 789, 790 (jump to 776, 0km)
- Hohonu
- 776, 775
