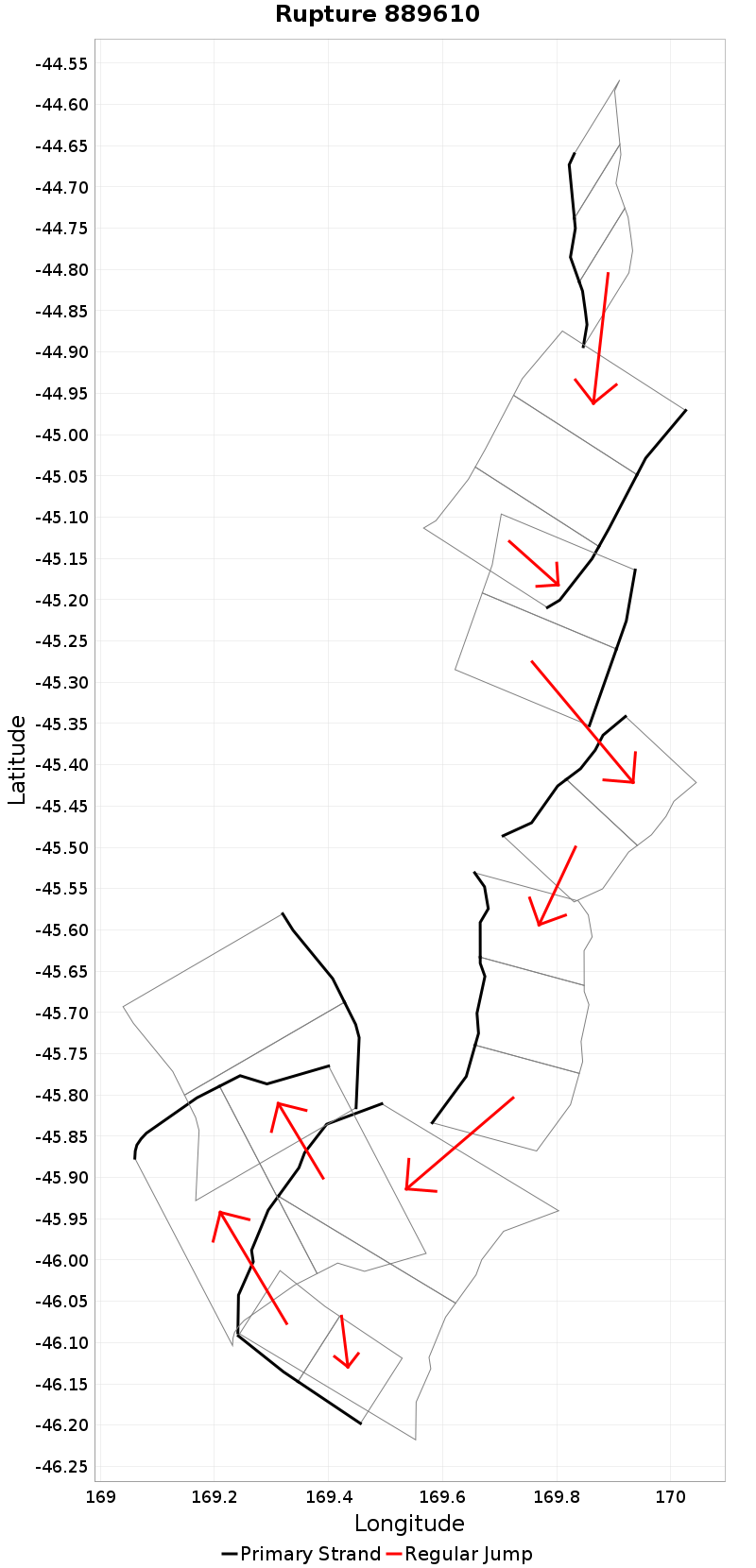

Rupture 889610
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 262.1 | 7.9 | 21 | 9 | 8,362.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 7.2 | 18.2 | 1.5 | 88.6 | -89.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 120 | 4 | 856.1 | 6.455821E-8 |
Text representation:
[419:1647,1646,1645][157:664,665,666][161:678,679][494:1955,1954][50:258,257,256][59:285,286][49:254,255][558:2179,2180][585:2272,2271]
Fault section list. First section listed is North East relative to the last section.
- Omarama Saddle
- 1647, 1646, 1645 (jump to 664, 7.2km)
- Garibaldi
- 664, 665, 666 (jump to 678, 4.2km)
- Gimmerburn
- 678, 679 (jump to 1955, 2.3km)
- Pylap
- 1955, 1954 (jump to 258, 0.4km)
- Beaumont River
- 258, 257, 256 (jump to 285, 3.5km)
- Blue Mountain
- 285, 286 (jump to 254, 0.2km)
- Beacon Hill
- 254, 255 (jump to 2179, 0.2km)
- Spylaw
- 2179, 2180 (jump to 2272, 0.2km)
- Teviot
- 2272, 2271
