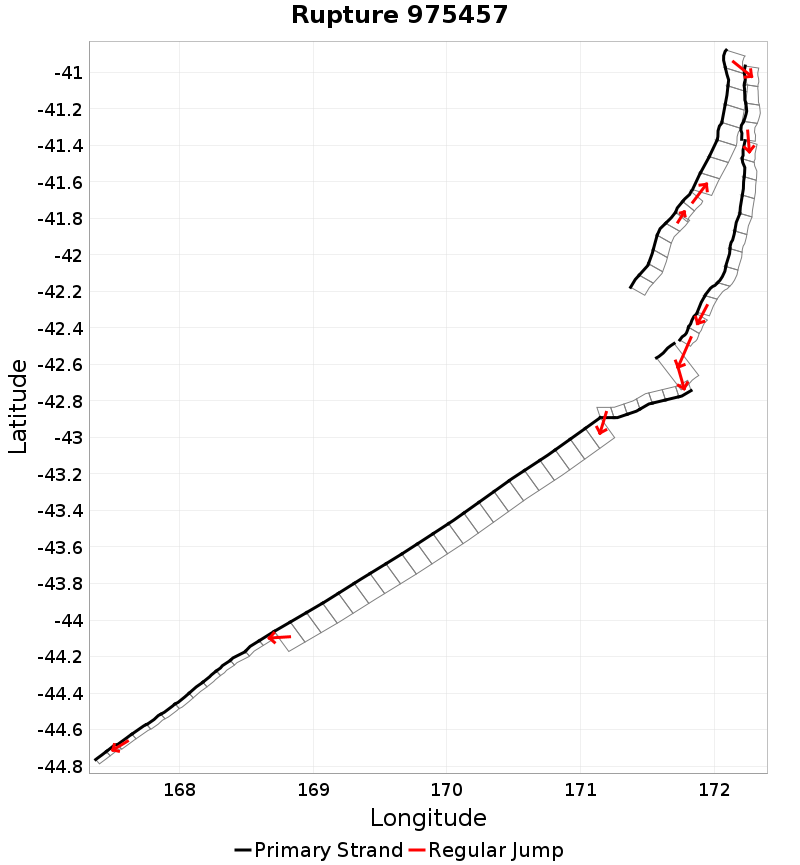

Rupture 975457
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 779.9 | 8.2 | 74 | 11 | 17,709.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.4 | 14.4 | 1.8 | 338.7 | -50.1 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 170 | 4 | 837.7 | 1.015968E-8 |
Text representation:
[457:1799,1800,1801,1802,1803,1804][458:1806,1805][270:1089,1090,1091,1092,1093,1094,1095,1096][268:1083,1084,1085,1086][697:2684,2685,2686,2687,2688,2689,2690,2691,2692,2693][698:2695,2694][192:778][251:1013,1012,1011,1010,1009,1008,1007][18:95,94,93,92,91,90,89,88,87,86,85,84,83,82,81,80,79,78,77,76,75][17:74,73,72,71,70,69,68,67,66,65,64][16:62,63]
Fault section list. First section listed is North East relative to the last section.
- Paparoa West
- 1799, 1800, 1801, 1802, 1803, 1804 (jump to 1806, 0km)
- Paparoa West: North
- 1806, 1805 (jump to 1089, 1.5km)
- Kongahau
- 1089, 1090, 1091, 1092, 1093, 1094, 1095, 1096 (jump to 1083, 5.4km)
- Kohaihai
- 1083, 1084, 1085, 1086 (jump to 2684, 2.2km)
- White Creek
- 2684, 2685, 2686, 2687, 2688, 2689, 2690, 2691, 2692, 2693 (jump to 2695, 1km)
- White Creek - buried
- 2695, 2694 (jump to 778, 4.1km)
- Hohonu North
- 778 (jump to 1013, 0.1km)
- Kelly
- 1013, 1012, 1011, 1010, 1009, 1008, 1007 (jump to 95, 0km)
- Alpine: Jacksons to Kaniere
- 95, 94, 93, 92, 91, 90, 89, 88, 87, 86, 85, 84, 83, 82, 81, 80, 79, 78, 77, 76, 75 (jump to 74, 0km)
- Alpine: George to Jacksons
- 74, 73, 72, 71, 70, 69, 68, 67, 66, 65, 64 (jump to 62, 0km)
- Alpine: George seaward
- 62, 63
