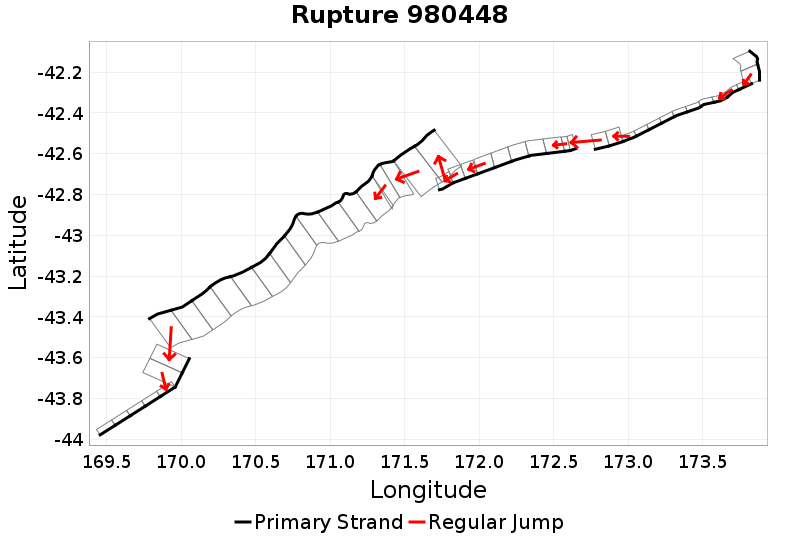

Rupture 980448
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 449.9 | 8 | 47 | 13 | 10,552.3 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10.4 | 13.3 | 1.1 | 36.9 | -57 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 300 | 4 | 852.9 | 3.3400312E-8 |
Text representation:
[459:1808,1807][205:831,830][198:807,808,809,810,811,812,813,814][199:816,815][204:828,829][202:821,822,823,824,825][203:827,826][251:1013][192:778,777][191:775,776][193:790,789,788,787,786,785,784,783,782,781,780,779][332:1327,1328][279:1136,1137,1138,1139,1140]
Fault section list. First section listed is North East relative to the last section.
- Papatea
- 1808, 1807 (jump to 831, 0.2km)
- Hope: Seaward
- 831, 830 (jump to 807, 0km)
- Hope: Conway
- 807, 808, 809, 810, 811, 812, 813, 814 (jump to 816, 0km)
- Hope: Hamner SE
- 816, 815 (jump to 828, 10.4km)
- Hope: Kakapo-2-Hamner
- 828, 829 (jump to 821, 0km)
- Hope: Hope River
- 821, 822, 823, 824, 825 (jump to 827, 0km)
- Hope: Hurunui
- 827, 826 (jump to 1013, 0km)
- Kelly
- 1013 (jump to 778, 0.1km)
- Hohonu North
- 778, 777 (jump to 775, 0km)
- Hohonu
- 775, 776 (jump to 790, 0km)
- Hohonu South
- 790, 789, 788, 787, 786, 785, 784, 783, 782, 781, 780, 779 (jump to 1327, 2.6km)
- McKerrow - Douglas Duplex
- 1327, 1328 (jump to 1136, 0km)
- Landsborough 2
- 1136, 1137, 1138, 1139, 1140
