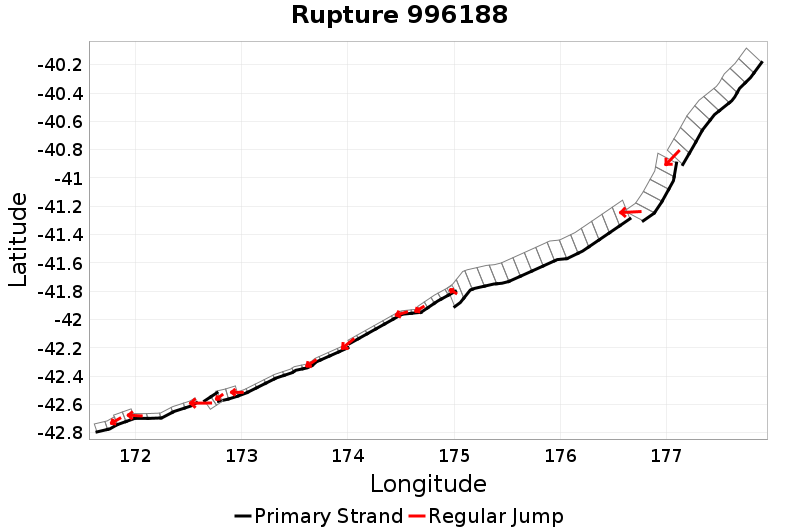

Rupture 996188
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 609.7 | 8 | 69 | 13 | 12,246.3 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 19.5 | 1 | 12.6 | -56.2 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 170 | 4 | 782.5 | 9.145005E-9 |
Text representation:
[473:1864,1863,1862,1861,1860,1859,1858,1857,1856,1855][615:2372,2371,2370,2369,2368][426:1684,1683,1682,1681,1680,1679,1678,1677,1676,1675,1674,1673,1672,1671,1670,1669][581:2260,2259,2258,2257,2256][580:2255,2254][207:838,839,840,841,842,843][205:833,832,831,830][198:807,808,809,810,811,812,813,814][199:816,815][201:820,819][241:968,967,966,965,964][203:827,826][251:1013,1012]
Fault section list. First section listed is North East relative to the last section.
- PorWest2 - PaoanuiRSouth
- 1864, 1863, 1862, 1861, 1860, 1859, 1858, 1857, 1856, 1855 (jump to 2372, 3.8km)
- Uruti East - PorWest 1
- 2372, 2371, 2370, 2369, 2368 (jump to 1684, 5.5km)
- Opouawe - Uruti
- 1684, 1683, 1682, 1681, 1680, 1679, 1678, 1677, 1676, 1675, 1674, 1673, 1672, 1671, 1670, 1669 (jump to 2260, 0.2km)
- Te Rapa 2
- 2260, 2259, 2258, 2257, 2256 (jump to 2255, 0km)
- Te Rapa 1
- 2255, 2254 (jump to 838, 0km)
- Hope: Te Rapa
- 838, 839, 840, 841, 842, 843 (jump to 833, 3.5km)
- Hope: Seaward
- 833, 832, 831, 830 (jump to 807, 0km)
- Hope: Conway
- 807, 808, 809, 810, 811, 812, 813, 814 (jump to 816, 0km)
- Hope: Hamner SE
- 816, 815 (jump to 820, 0.1km)
- Hope: Hanmer NW
- 820, 819 (jump to 968, 6.3km)
- Kakapo
- 968, 967, 966, 965, 964 (jump to 827, 0km)
- Hope: Hurunui
- 827, 826 (jump to 1013, 0km)
- Kelly
- 1013, 1012
