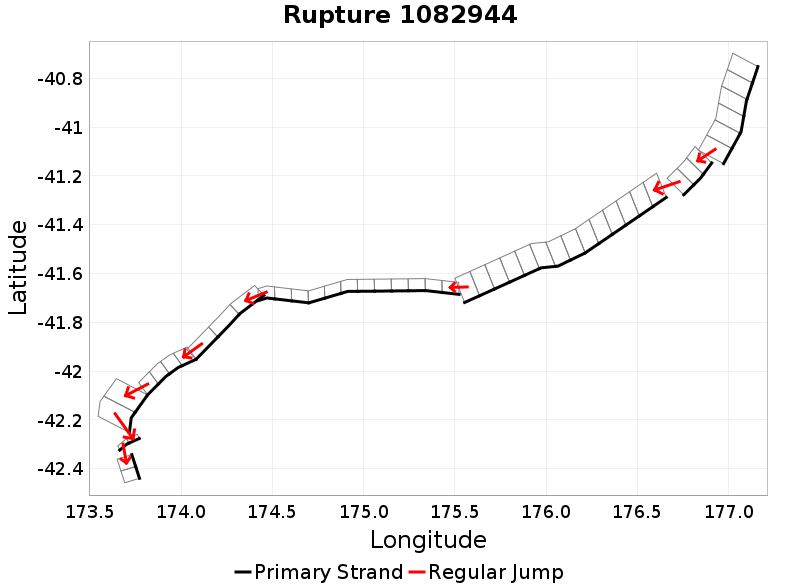

Rupture 1082944
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 375.2 | 7.8 | 48 | 9 | 6,750.5 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.8 | 16.6 | 1.1 | 36.6 | -46 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 360 | 4 | 609.9 | 5.2545072E-8 |
Text representation:
[615:3433,3432,3431,3430,3429,3428][618:3442,3443,3444][426:2378,2377,2376,2375,2374,2373,2372,2371,2370,2369,2368,2367,2366,2365][61:484,485,486,487,488,489,490,491,492,493,494,495][367:2094,2095,2096][249:1428,1429,1430,1431][227:1336,1335][205:1212,1211][232:1363,1364]
Fault section list. First section listed is North East relative to the last section.
- Uruti East - PorWest 1
- 3433, 3432, 3431, 3430, 3429, 3428 (jump to 3442, 2.9km)
- Uruti Ridge 2
- 3442, 3443, 3444 (jump to 2378, 4km)
- Opouawe - Uruti
- 2378, 2377, 2376, 2375, 2374, 2373, 2372, 2371, 2370, 2369, 2368, 2367, 2366, 2365 (jump to 484, 0.5km)
- BooBoo
- 484, 485, 486, 487, 488, 489, 490, 491, 492, 493, 494, 495 (jump to 2094, 0.1km)
- Needles
- 2094, 2095, 2096 (jump to 1428, 0km)
- Kekerengu 1
- 1428, 1429, 1430, 1431 (jump to 1336, 0km)
- Jordan
- 1336, 1335 (jump to 1212, 4.3km)
- Hope: Seaward
- 1212, 1211 (jump to 1363, 4.8km)
- Kaikoura 2
- 1363, 1364
