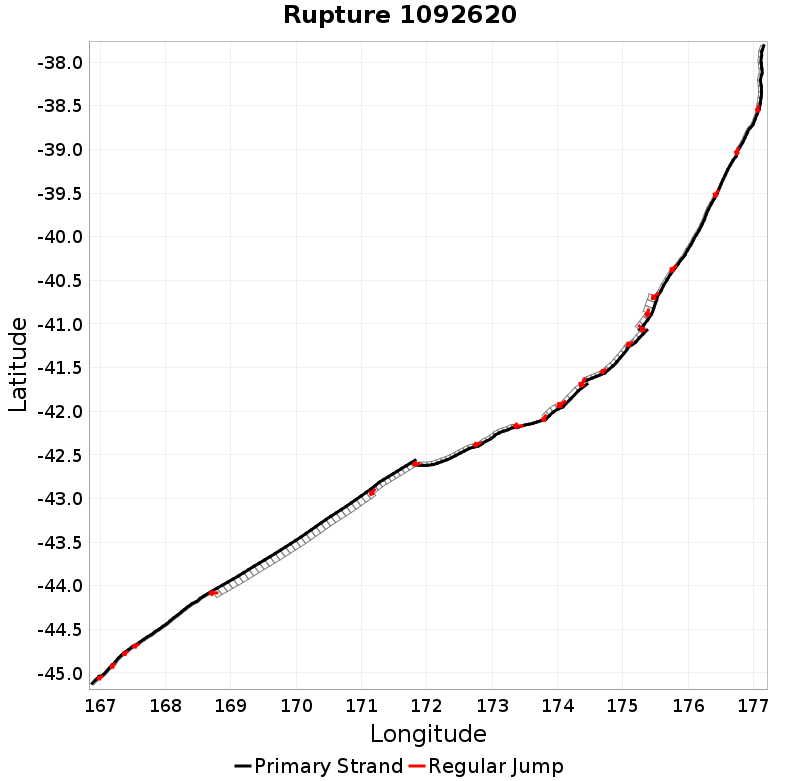

Rupture 1092620
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 1,244.7 | 8.3 | 180 | 22 | 19,364.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 14.7 | 1.1 | 64 | -11.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 330 | 9 | 1,165.6 | 3.5776563E-15 |
Text representation:
[635:3515,3516,3517,3518,3519,3520,3521,3522,3523,3524,3525][636:3534,3533,3532,3531,3530,3529,3528,3527,3526][337:1943,1942,1941,1940,1939,1938,1937,1936,1935][338:1958,1957,1956,1955,1954,1953,1952,1951,1950,1949,1948,1947,1946,1945,1944][678:3743,3744,3745,3746,3747][681:3753,3754,3755][680:3750,3751,3752][651:3619,3618,3617,3616][650:3615,3614,3613,3612,3611,3610,3609][653:3626,3627,3628,3629,3630][367:2094,2095,2096][249:1428,1429,1430,1431][143:902,903,904,905,906,907][94:681,680,679,678,677,676,675,674,673][96:691,692,693,694,695,696,697,698,699,700,701,702,703][19:156,157,158,159,160,161,162,163,164,165][18:149,148,147,146,145,144,143,142,141,140,139,138,137,136,135,134,133,132,131,130,129,128,127,126,125,124,123,122,121,120,119][17:118,117,116,115,114,113,112,111,110,109,108,107,106,105,104,103,102,101,100,99][16:96,97,98][14:92,91,90,89][13:88,87,86,85][20:167,166]
Fault section list. First section listed is North East relative to the last section.
- Waimana: North
- 3515, 3516, 3517, 3518, 3519, 3520, 3521, 3522, 3523, 3524, 3525 (jump to 3534, 0km)
- Waimana: South
- 3534, 3533, 3532, 3531, 3530, 3529, 3528, 3527, 3526 (jump to 1943, 0km)
- Mohaka: North
- 1943, 1942, 1941, 1940, 1939, 1938, 1937, 1936, 1935 (jump to 1958, 0km)
- Mohaka: South
- 1958, 1957, 1956, 1955, 1954, 1953, 1952, 1951, 1950, 1949, 1948, 1947, 1946, 1945, 1944 (jump to 3743, 0km)
- Wellington: Pahiatua
- 3743, 3744, 3745, 3746, 3747 (jump to 3753, 0km)
- Wellington: Tararua 3
- 3753, 3754, 3755 (jump to 3750, 0km)
- Wellington: Tararua 2
- 3750, 3751, 3752 (jump to 3619, 6.3km)
- Wairarapa: 2
- 3619, 3618, 3617, 3616 (jump to 3615, 0km)
- Wairarapa: 1
- 3615, 3614, 3613, 3612, 3611, 3610, 3609 (jump to 3626, 0km)
- Wairarapa: Needles
- 3626, 3627, 3628, 3629, 3630 (jump to 2094, 4.6km)
- Needles
- 2094, 2095, 2096 (jump to 1428, 0km)
- Kekerengu 1
- 1428, 1429, 1430, 1431 (jump to 902, 0km)
- Fidget
- 902, 903, 904, 905, 906, 907 (jump to 681, 3.2km)
- Clarence: Central
- 681, 680, 679, 678, 677, 676, 675, 674, 673 (jump to 691, 0km)
- Clarence: Southwest
- 691, 692, 693, 694, 695, 696, 697, 698, 699, 700, 701, 702, 703 (jump to 156, 0.5km)
- Alpine: Kaniere to Springs Junction
- 156, 157, 158, 159, 160, 161, 162, 163, 164, 165 (jump to 149, 0km)
- Alpine: Jacksons to Kaniere
- 149, 148, 147, 146, 145, 144, 143, 142, 141, 140, 139, 138, 137, 136, 135, 134, 133, 132, 131, 130, 129, 128, 127, 126, 125, 124, 123, 122, 121, 120, 119 (jump to 118, 0km)
- Alpine: George to Jacksons
- 118, 117, 116, 115, 114, 113, 112, 111, 110, 109, 108, 107, 106, 105, 104, 103, 102, 101, 100, 99 (jump to 96, 0km)
- Alpine: George seaward
- 96, 97, 98 (jump to 92, 0km)
- Alpine: Caswell - South George
- 92, 91, 90, 89 (jump to 88, 0km)
- Alpine: Caswell
- 88, 87, 86, 85 (jump to 167, 0km)
- Alpine: Nancy
- 167, 166
