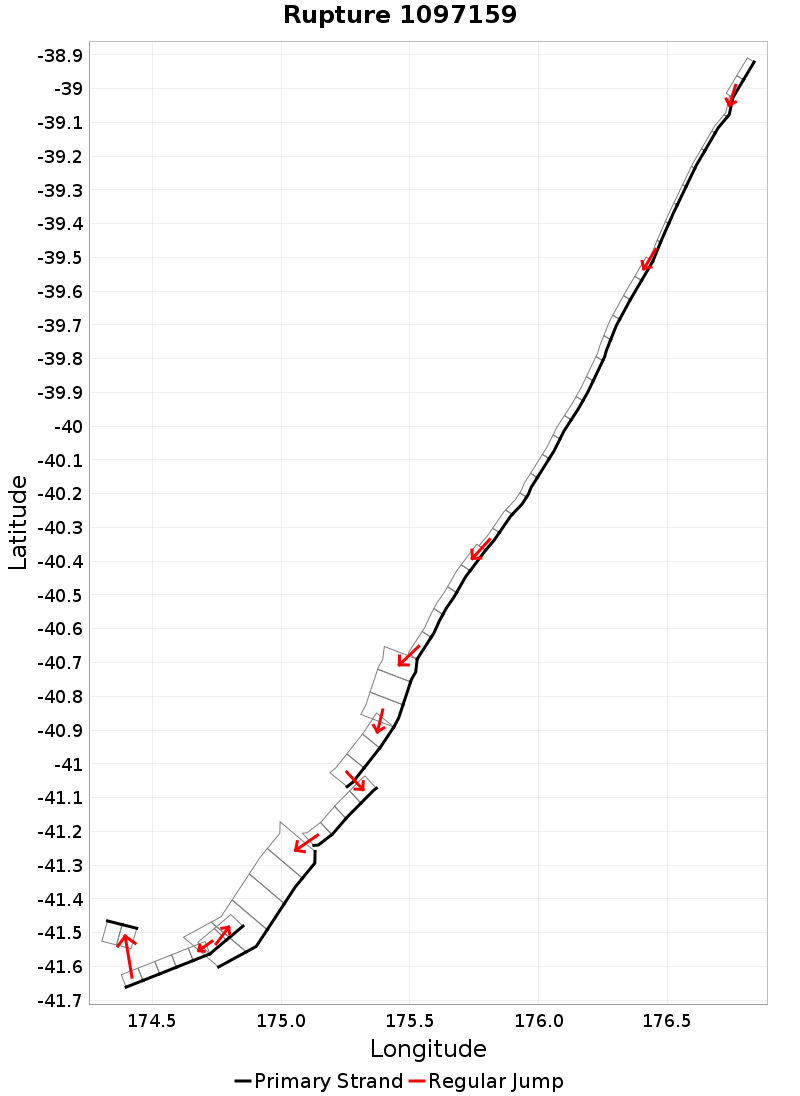

Rupture 1097159
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 408.4 | 7.8 | 55 | 11 | 7,014.8 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.8 | 14.7 | 1.1 | 40.1 | -23.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 360 | 8 | 933.7 | 2.5548834E-12 |
Text representation:
[636:3527,3526][337:1943,1942,1941,1940,1939,1938,1937,1936,1935][338:1958,1957,1956,1955,1954,1953,1952,1951,1950,1949,1948,1947,1946,1945,1944][678:3743,3744,3745,3746,3747][681:3753,3754,3755][680:3750,3751,3752][651:3619,3618,3617,3616][693:3840,3839,3838,3837,3836][650:3610,3609][653:3626,3627,3628,3629,3630][101:713,714]
Fault section list. First section listed is North East relative to the last section.
- Waimana: South
- 3527, 3526 (jump to 1943, 0km)
- Mohaka: North
- 1943, 1942, 1941, 1940, 1939, 1938, 1937, 1936, 1935 (jump to 1958, 0km)
- Mohaka: South
- 1958, 1957, 1956, 1955, 1954, 1953, 1952, 1951, 1950, 1949, 1948, 1947, 1946, 1945, 1944 (jump to 3743, 0km)
- Wellington: Pahiatua
- 3743, 3744, 3745, 3746, 3747 (jump to 3753, 0km)
- Wellington: Tararua 3
- 3753, 3754, 3755 (jump to 3750, 0km)
- Wellington: Tararua 2
- 3750, 3751, 3752 (jump to 3619, 6.3km)
- Wairarapa: 2
- 3619, 3618, 3617, 3616 (jump to 3840, 1.3km)
- Wharekauhau
- 3840, 3839, 3838, 3837, 3836 (jump to 3610, 0.2km)
- Wairarapa: 1
- 3610, 3609 (jump to 3626, 0km)
- Wairarapa: Needles
- 3626, 3627, 3628, 3629, 3630 (jump to 713, 6.8km)
- Cloudy 3
- 713, 714
