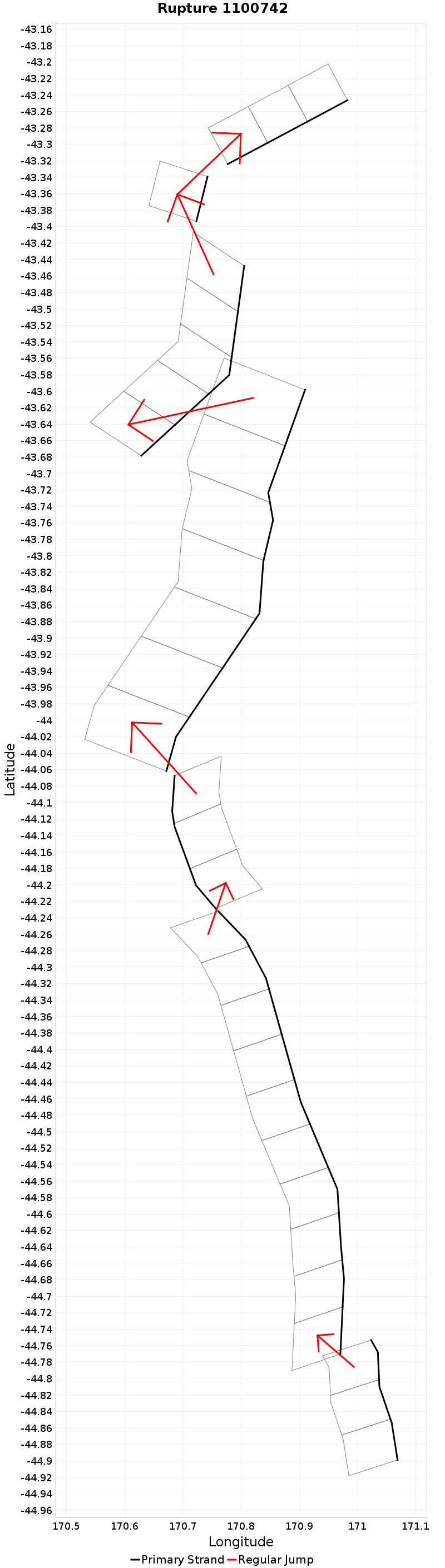

Rupture 1100742
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 212.7 | 7.4 | 32 | 7 | 3,136.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.2 | 20.6 | 1.2 | 28.8 | -71.7 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 140 | 2 | 846 | 4.709471E-6 |
Text representation:
[640:3544,3543,3542][215:1275,1276,1277,1278,1279,1280,1281,1282,1283,1284][423:2350,2349,2348][151:963,964,965,966,967,968,969][610:3401,3400,3399,3398,3397][619:3445][399:2225,2226,2227]
Fault section list. First section listed is South East relative to the last section.
- Waimate
- 3544, 3543, 3542 (jump to 1275, 3.6km)
- Hunters
- 1275, 1276, 1277, 1278, 1279, 1280, 1281, 1282, 1283, 1284 (jump to 2350, 0.5km)
- Opawa
- 2350, 2349, 2348 (jump to 963, 1.3km)
- Fox Peak
- 963, 964, 965, 966, 967, 968, 969 (jump to 3401, 5.7km)
- Two Thumb Stream
- 3401, 3400, 3399, 3398, 3397 (jump to 3445, 6.2km)
- Veil Stream
- 3445 (jump to 2225, 3.3km)
- Observation
- 2225, 2226, 2227
