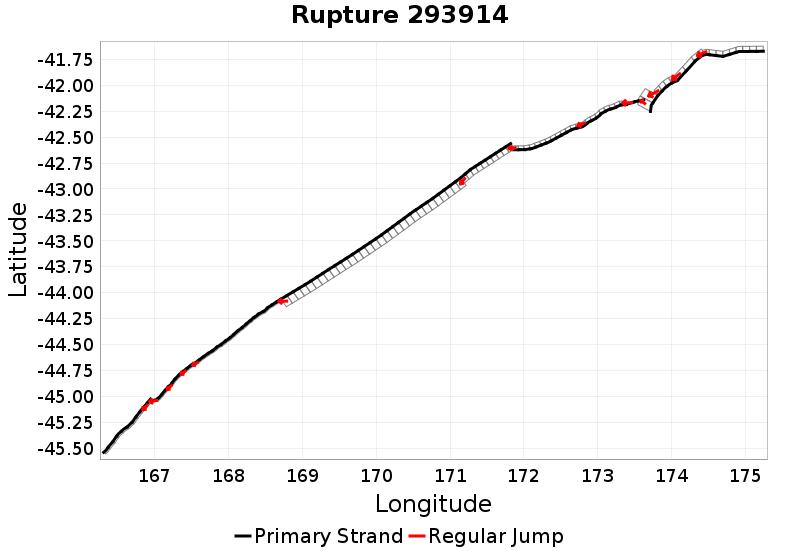

Rupture 293914
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 867.8 | 8.1 | 126 | 15 | 13,267.3 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 3.4 | 7.5 | 1 | 29.3 | -12.4 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 250 | 3 | 851.6 | 4.3510335E-7 |
Text representation:
[61:487,488,489,490,491,492,493,494,495][367:2094,2095,2096][249:1428,1429,1430,1431][227:1336,1335][143:905,906,907][94:681,680,679,678,677,676,675,674,673][96:691,692,693,694,695,696,697,698,699,700,701,702,703][19:156,157,158,159,160,161,162,163,164,165][18:149,148,147,146,145,144,143,142,141,140,139,138,137,136,135,134,133,132,131,130,129,128,127,126,125,124,123,122,121,120,119][17:118,117,116,115,114,113,112,111,110,109,108,107,106,105,104,103,102,101,100,99][16:96,97,98][14:92,91,90,89][13:88,87,86,85][21:169,168][22:170,171,172,173,174,175,176,177,178]
Fault section list. First section listed is North East relative to the last section.
- BooBoo
- 487, 488, 489, 490, 491, 492, 493, 494, 495 (jump to 2094, 0.1km)
- Needles
- 2094, 2095, 2096 (jump to 1428, 0km)
- Kekerengu 1
- 1428, 1429, 1430, 1431 (jump to 1336, 0km)
- Jordan
- 1336, 1335 (jump to 905, 0.2km)
- Fidget
- 905, 906, 907 (jump to 681, 3.2km)
- Clarence: Central
- 681, 680, 679, 678, 677, 676, 675, 674, 673 (jump to 691, 0km)
- Clarence: Southwest
- 691, 692, 693, 694, 695, 696, 697, 698, 699, 700, 701, 702, 703 (jump to 156, 0.5km)
- Alpine: Kaniere to Springs Junction
- 156, 157, 158, 159, 160, 161, 162, 163, 164, 165 (jump to 149, 0km)
- Alpine: Jacksons to Kaniere
- 149, 148, 147, 146, 145, 144, 143, 142, 141, 140, 139, 138, 137, 136, 135, 134, 133, 132, 131, 130, 129, 128, 127, 126, 125, 124, 123, 122, 121, 120, 119 (jump to 118, 0km)
- Alpine: George to Jacksons
- 118, 117, 116, 115, 114, 113, 112, 111, 110, 109, 108, 107, 106, 105, 104, 103, 102, 101, 100, 99 (jump to 96, 0km)
- Alpine: George seaward
- 96, 97, 98 (jump to 92, 0km)
- Alpine: Caswell - South George
- 92, 91, 90, 89 (jump to 88, 0km)
- Alpine: Caswell
- 88, 87, 86, 85 (jump to 169, 3.4km)
- Alpine: Resolution - Charles
- 169, 168 (jump to 170, 0km)
- Alpine: Resolution - Dagg
- 170, 171, 172, 173, 174, 175, 176, 177, 178
