Rupture 449088
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 186.6 | 7.5 | 23 | 7 | 3,510 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.7 | 12.9 | 1.2 | 35.8 | -78 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 60 | 1 | 576.3 | 3.083729E-4 |
Text representation:
[178:1083,1084,1085,1086,1087,1088][106:729,728,727][219:1305,1306,1307,1308,1309,1310][294:1732,1733][50:435,434][44:407][558:3154,3153,3152]

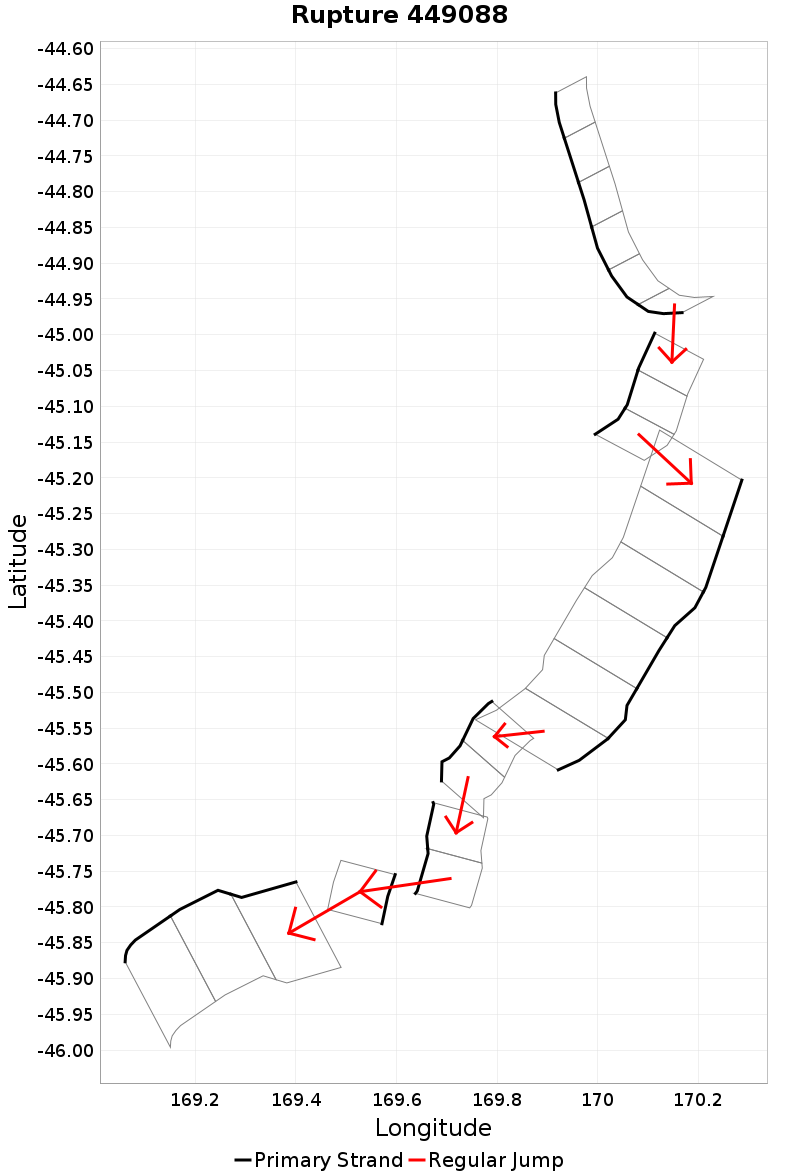

Fault section list. First section listed is North East relative to the last section.
- Hawkdun
- 1083, 1084, 1085, 1086, 1087, 1088 (jump to 729, 3.2km)
- Cross Eden
- 729, 728, 727 (jump to 1305, 0.2km)
- Hyde North
- 1305, 1306, 1307, 1308, 1309, 1310 (jump to 1732, 0.4km)
- Logan Burn
- 1732, 1733 (jump to 435, 0.5km)
- Beaumont River
- 435, 434 (jump to 407, 3.9km)
- Backbone
- 407 (jump to 3154, 4.7km)
- Spylaw
- 3154, 3153, 3152
