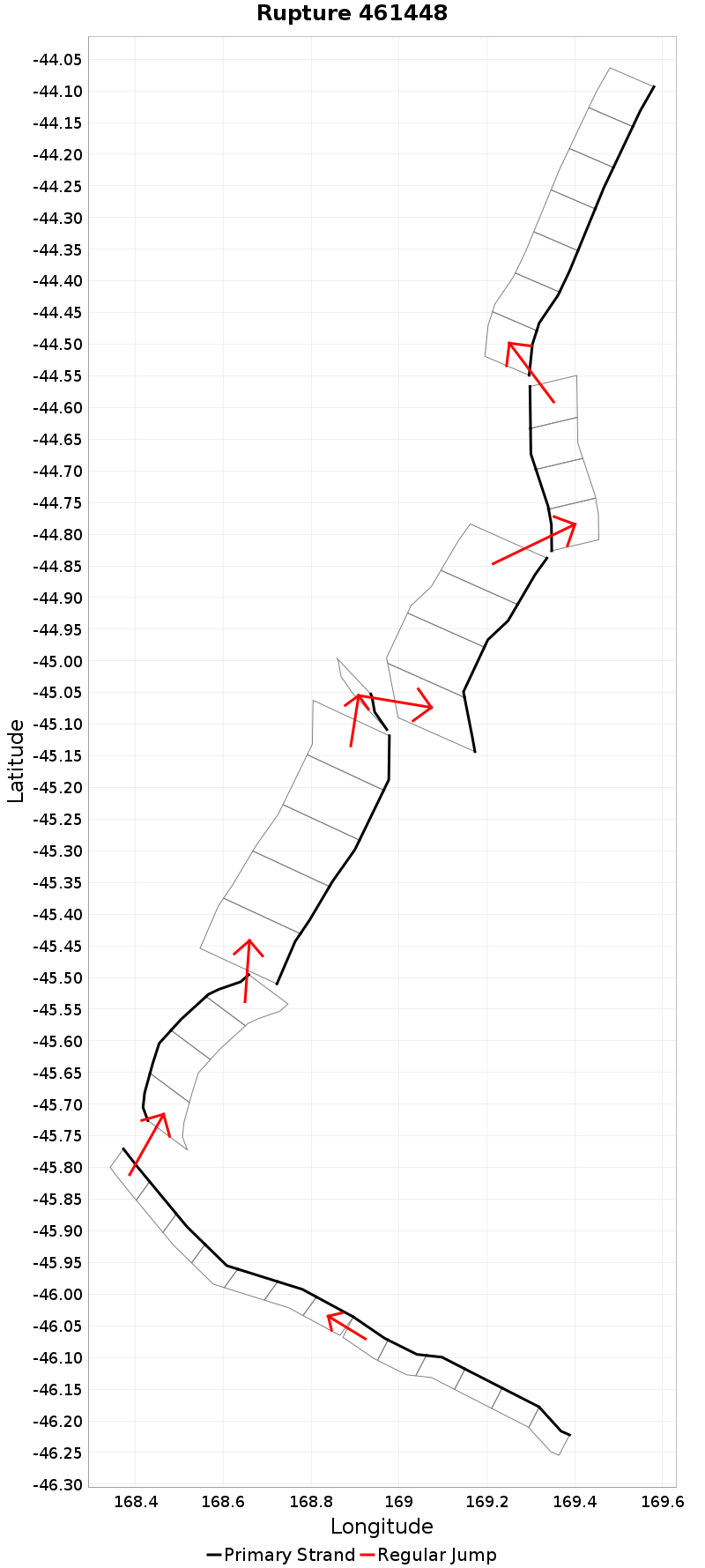

Rupture 461448
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 309.8 | 7.7 | 38 | 8 | 5,536.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.8 | 19 | 1.3 | 72.6 | -84.2 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 120 | 0.0 | 775.4 | 2.7725424E-4 |
Text representation:
[189:1126,1125,1124,1123,1122,1121][194:1166,1165,1164,1163,1162,1161,1160][333:1915,1914,1913,1912][369:2100,2101,2102,2103,2104][366:2090][468:2610,2609,2608,2607][167:1027,1028,1029,1030][214:1268,1269,1270,1271,1272,1273,1274]
Fault section list. First section listed is South West relative to the last section.
- Hillfoot
- 1126, 1125, 1124, 1123, 1122, 1121 (jump to 1166, 0km)
- Hokonui
- 1166, 1165, 1164, 1163, 1162, 1161, 1160 (jump to 1915, 6.6km)
- Mid Dome
- 1915, 1914, 1913, 1912 (jump to 2100, 1km)
- Nevis
- 2100, 2101, 2102, 2103, 2104 (jump to 2090, 1.1km)
- NW Cardrona South
- 2090 (jump to 2610, 6.8km)
- Pisa
- 2610, 2609, 2608, 2607 (jump to 1027, 1.6km)
- Grandview
- 1027, 1028, 1029, 1030 (jump to 1268, 2km)
- Hunter Valley
- 1268, 1269, 1270, 1271, 1272, 1273, 1274
