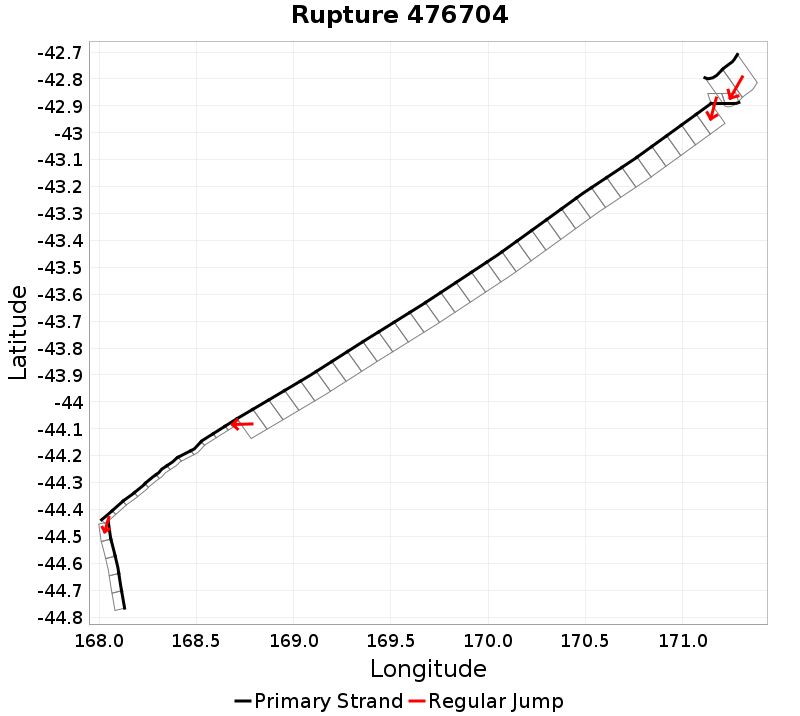

Rupture 476704
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 371.6 | 7.7 | 52 | 5 | 5,592.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 0.32674035 | 0.43367583 | 1.1 | 39.1 | -25.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 220 | 4 | 503.8 | 8.090864E-6 |
Text representation:
[193:1156,1157][251:1443,1442][18:149,148,147,146,145,144,143,142,141,140,139,138,137,136,135,134,133,132,131,130,129,128,127,126,125,124,123,122,121,120,119][17:118,117,116,115,114,113,112,111,110,109,108,107][108:735,736,737,738,739]
Fault section list. First section listed is North East relative to the last section.
- Hohonu South
- 1156, 1157 (jump to 1443, 0.1km)
- Kelly
- 1443, 1442 (jump to 149, 0km)
- Alpine: Jacksons to Kaniere
- 149, 148, 147, 146, 145, 144, 143, 142, 141, 140, 139, 138, 137, 136, 135, 134, 133, 132, 131, 130, 129, 128, 127, 126, 125, 124, 123, 122, 121, 120, 119 (jump to 118, 0km)
- Alpine: George to Jacksons
- 118, 117, 116, 115, 114, 113, 112, 111, 110, 109, 108, 107 (jump to 735, 0.3km)
- Darran
- 735, 736, 737, 738, 739
