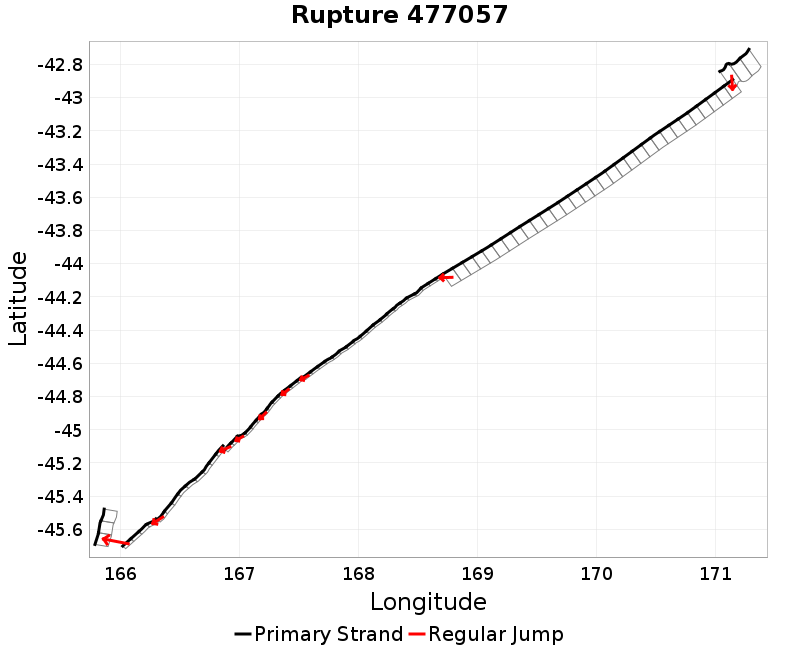

Rupture 477057
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 570.3 | 7.9 | 83 | 10 | 8,393.8 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 11.3 | 18.6 | 1 | 20.8 | -10 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 160 | 2 | 617.4 | 2.9186274E-5 |
Text representation:
[193:1157,1156,1155][18:149,148,147,146,145,144,143,142,141,140,139,138,137,136,135,134,133,132,131,130,129,128,127,126,125,124,123,122,121,120,119][17:118,117,116,115,114,113,112,111,110,109,108,107,106,105,104,103,102,101,100,99][16:96,97,98][14:92,91,90,89][13:88,87,86,85][20:167,166][22:170,171,172,173,174,175,176,177,178][23:189,188,187,186][77:590,591,592]
Fault section list. First section listed is North East relative to the last section.
- Hohonu South
- 1157, 1156, 1155 (jump to 149, 3.7km)
- Alpine: Jacksons to Kaniere
- 149, 148, 147, 146, 145, 144, 143, 142, 141, 140, 139, 138, 137, 136, 135, 134, 133, 132, 131, 130, 129, 128, 127, 126, 125, 124, 123, 122, 121, 120, 119 (jump to 118, 0km)
- Alpine: George to Jacksons
- 118, 117, 116, 115, 114, 113, 112, 111, 110, 109, 108, 107, 106, 105, 104, 103, 102, 101, 100, 99 (jump to 96, 0km)
- Alpine: George seaward
- 96, 97, 98 (jump to 92, 0km)
- Alpine: Caswell - South George
- 92, 91, 90, 89 (jump to 88, 0km)
- Alpine: Caswell
- 88, 87, 86, 85 (jump to 167, 0km)
- Alpine: Nancy
- 167, 166 (jump to 170, 2.6km)
- Alpine: Resolution - Dagg
- 170, 171, 172, 173, 174, 175, 176, 177, 178 (jump to 189, 0.9km)
- Alpine: Resolution - Five Fingers
- 189, 188, 187, 186 (jump to 590, 11.3km)
- Caswell 211
- 590, 591, 592
