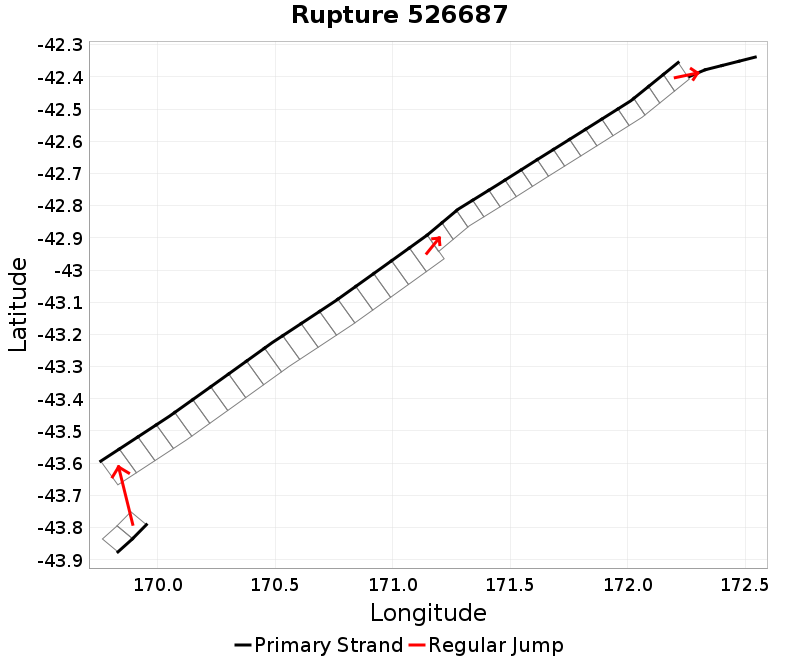

Rupture 526687
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 280.4 | 7.5 | 40 | 4 | 4,088.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 10.3 | 11 | 1 | 1.7 | -29.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 120 | 1 | 217.3 | 0.010903704 |
Text representation:
[218:1303,1304][18:132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149][19:165,164,163,162,161,160,159,158,157,156,155,154,153,152,151,150][150:960,959,958,957]
Fault section list. First section listed is South West relative to the last section.
- Huxley
- 1303, 1304 (jump to 132, 10.3km)
- Alpine: Jacksons to Kaniere
- 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149 (jump to 165, 0km)
- Alpine: Kaniere to Springs Junction
- 165, 164, 163, 162, 161, 160, 159, 158, 157, 156, 155, 154, 153, 152, 151, 150 (jump to 960, 0.7km)
- Fowlers
- 960, 959, 958, 957
