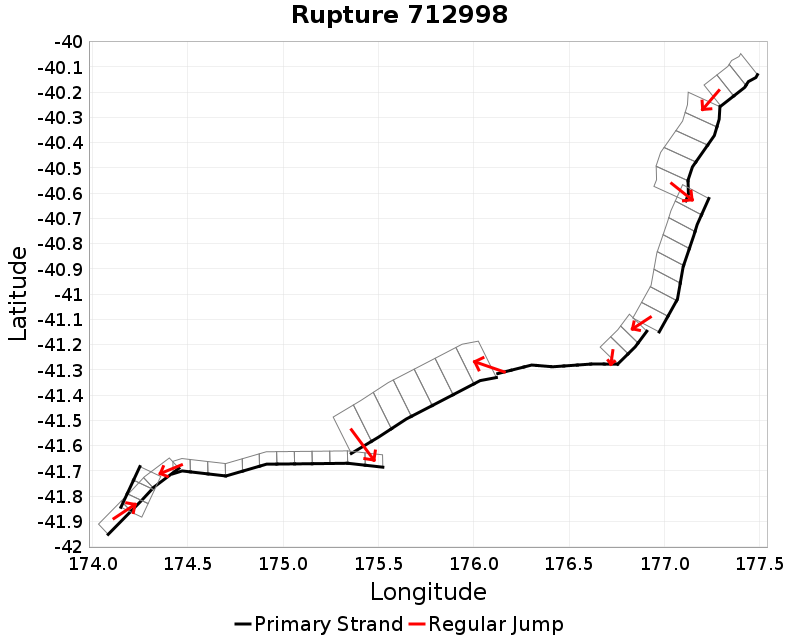

Rupture 712998
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 429.6 | 7.9 | 53 | 9 | 8,276.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.7 | 15.1 | 1.2 | 79.5 | -40.7 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 310 | 4 | 1,071.2 | 5.1927255E-8 |
Text representation:
[349:2019,2020,2021][303:1789,1788,1787,1786,1785][615:3435,3434,3433,3432,3431,3430,3429,3428][618:3442,3443,3444][613:3421,3420,3419,3418,3417,3416,3415,3414,3413][453:2518,2519,2520,2521,2522,2523,2524][61:484,485,486,487,488,489,490,491,492,493,494,495][367:2094,2095,2096][295:1736,1737,1738]
Fault section list. First section listed is North East relative to the last section.
- Motu o Kura East
- 2019, 2020, 2021 (jump to 1789, 0.5km)
- Madden Banks
- 1789, 1788, 1787, 1786, 1785 (jump to 3435, 5.7km)
- Uruti East - PorWest 1
- 3435, 3434, 3433, 3432, 3431, 3430, 3429, 3428 (jump to 3442, 2.9km)
- Uruti Ridge 2
- 3442, 3443, 3444 (jump to 3421, 0km)
- Uruti Basin
- 3421, 3420, 3419, 3418, 3417, 3416, 3415, 3414, 3413 (jump to 2518, 1.4km)
- Palliser - Kaiwhata
- 2518, 2519, 2520, 2521, 2522, 2523, 2524 (jump to 484, 4.2km)
- BooBoo
- 484, 485, 486, 487, 488, 489, 490, 491, 492, 493, 494, 495 (jump to 2094, 0.1km)
- Needles
- 2094, 2095, 2096 (jump to 1736, 0.2km)
- London Hill
- 1736, 1737, 1738
