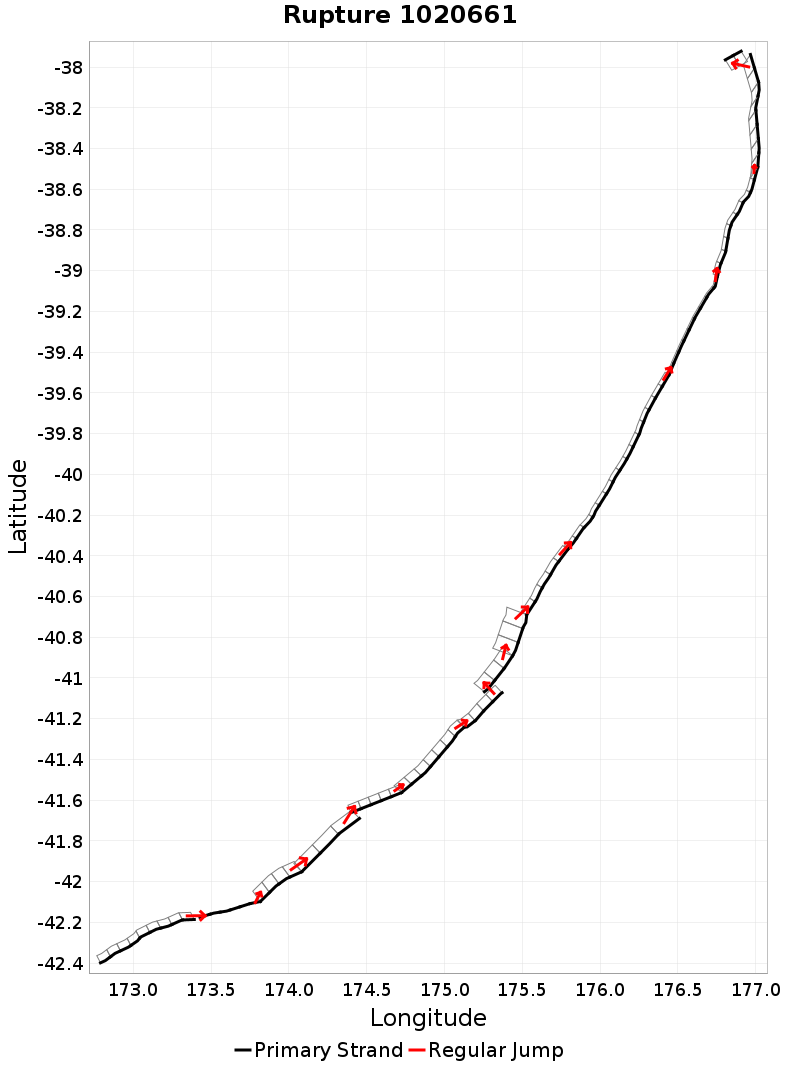

Rupture 1020661
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 665.5 | 8 | 92 | 15 | 11,278.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 14.4 | 1.1 | 57.1 | -6.1 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 310 | 8 | 1,018.6 | 6.278089E-13 |
Text representation:
[94:673,674,675,676,677,678,679,680,681][143:907,906,905,904,903,902][249:1431,1430,1429,1428][367:2096,2095,2094][653:3630,3629,3628,3627,3626][650:3609,3610,3611,3612,3613,3614,3615][651:3616,3617,3618,3619][680:3752,3751,3750][681:3755,3754,3753][678:3747,3746,3745,3744,3743][338:1944,1945,1946,1947,1948,1949,1950,1951,1952,1953,1954,1955,1956,1957,1958][337:1935,1936,1937,1938,1939,1940,1941,1942,1943][688:3798,3799,3800,3801,3802,3803,3804,3805,3806][687:3797,3796,3795,3794,3793,3792,3791,3790][435:2418,2417]
Fault section list. First section listed is South West relative to the last section.
- Clarence: Central
- 673, 674, 675, 676, 677, 678, 679, 680, 681 (jump to 907, 3.2km)
- Fidget
- 907, 906, 905, 904, 903, 902 (jump to 1431, 0km)
- Kekerengu 1
- 1431, 1430, 1429, 1428 (jump to 2096, 0km)
- Needles
- 2096, 2095, 2094 (jump to 3630, 4.6km)
- Wairarapa: Needles
- 3630, 3629, 3628, 3627, 3626 (jump to 3609, 0km)
- Wairarapa: 1
- 3609, 3610, 3611, 3612, 3613, 3614, 3615 (jump to 3616, 0km)
- Wairarapa: 2
- 3616, 3617, 3618, 3619 (jump to 3752, 6.3km)
- Wellington: Tararua 2
- 3752, 3751, 3750 (jump to 3755, 0km)
- Wellington: Tararua 3
- 3755, 3754, 3753 (jump to 3747, 0km)
- Wellington: Pahiatua
- 3747, 3746, 3745, 3744, 3743 (jump to 1944, 0km)
- Mohaka: South
- 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958 (jump to 1935, 0km)
- Mohaka: North
- 1935, 1936, 1937, 1938, 1939, 1940, 1941, 1942, 1943 (jump to 3798, 0km)
- Whakatane: South
- 3798, 3799, 3800, 3801, 3802, 3803, 3804, 3805, 3806 (jump to 3797, 0km)
- Whakatane: North
- 3797, 3796, 3795, 3794, 3793, 3792, 3791, 3790 (jump to 2418, 0.2km)
- Otakiri
- 2418, 2417
