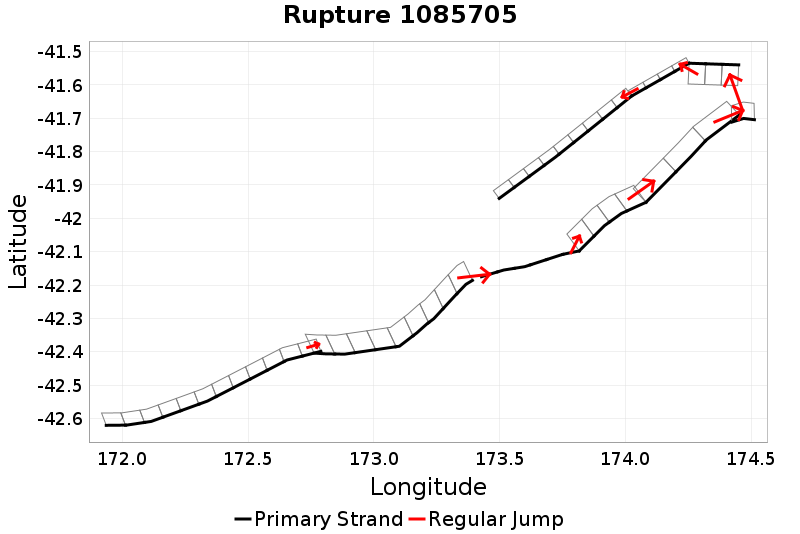

Rupture 1085705
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 340.4 | 7.7 | 51 | 9 | 5,395.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.4 | 10.1 | 1.4 | 100.6 | -12 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 290 | 5 | 560.7 | 6.763563E-9 |
Text representation:
[96:702,701,700,699,698,697,696,695,694,693,692,691][131:833,832,831,830,829,828,827,826,825][143:907,906,905,904,903,902][249:1431,1430,1429,1428][367:2096,2095,2094][61:495][623:3456,3457,3458][40:364,363,362,361][39:360,359,358,357,356,355,354,353,352]
Fault section list. First section listed is South West relative to the last section.
- Clarence: Southwest
- 702, 701, 700, 699, 698, 697, 696, 695, 694, 693, 692, 691 (jump to 833, 0.4km)
- Elliott
- 833, 832, 831, 830, 829, 828, 827, 826, 825 (jump to 907, 3.2km)
- Fidget
- 907, 906, 905, 904, 903, 902 (jump to 1431, 0km)
- Kekerengu 1
- 1431, 1430, 1429, 1428 (jump to 2096, 0km)
- Needles
- 2096, 2095, 2094 (jump to 495, 0.1km)
- BooBoo
- 495 (jump to 3456, 6.4km)
- Vernon 4
- 3456, 3457, 3458 (jump to 364, 0km)
- Awatere: Northeast 2
- 364, 363, 362, 361 (jump to 360, 0km)
- Awatere: Northeast 1
- 360, 359, 358, 357, 356, 355, 354, 353, 352
