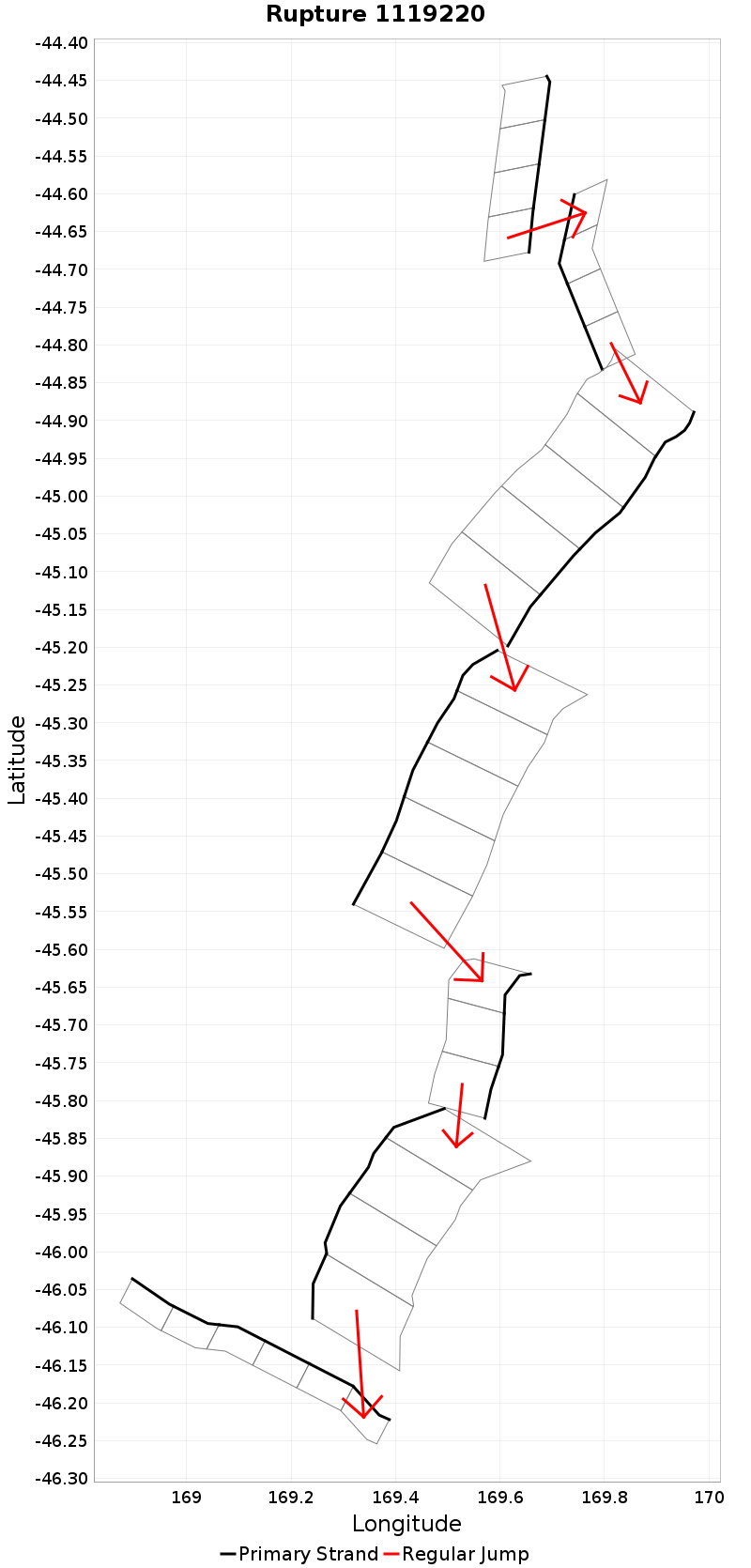

Rupture 1119220
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 249.6 | 7.6 | 31 | 7 | 4,615.9 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.2 | 17.7 | 1.3 | 50.5 | -82.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 80 | 2 | 861.1 | 4.709471E-6 |
Text representation:
[114:765,766,767,768][58:471,472,473,474][497:2812,2811,2810,2809,2808][292:1717,1718,1719,1720,1721][44:409,408,407][59:477,478,479,480][189:1126,1125,1124,1123,1122,1121]
Fault section list. First section listed is North East relative to the last section.
- Dromedary
- 765, 766, 767, 768 (jump to 471, 4.8km)
- Blue Lake
- 471, 472, 473, 474 (jump to 2812, 0.5km)
- Raggedy - Blackstone
- 2812, 2811, 2810, 2809, 2808 (jump to 1717, 1.5km)
- Little Valley
- 1717, 1718, 1719, 1720, 1721 (jump to 409, 3.4km)
- Backbone
- 409, 408, 407 (jump to 477, 1.3km)
- Blue Mountain
- 477, 478, 479, 480 (jump to 1126, 6.2km)
- Hillfoot
- 1126, 1125, 1124, 1123, 1122, 1121
