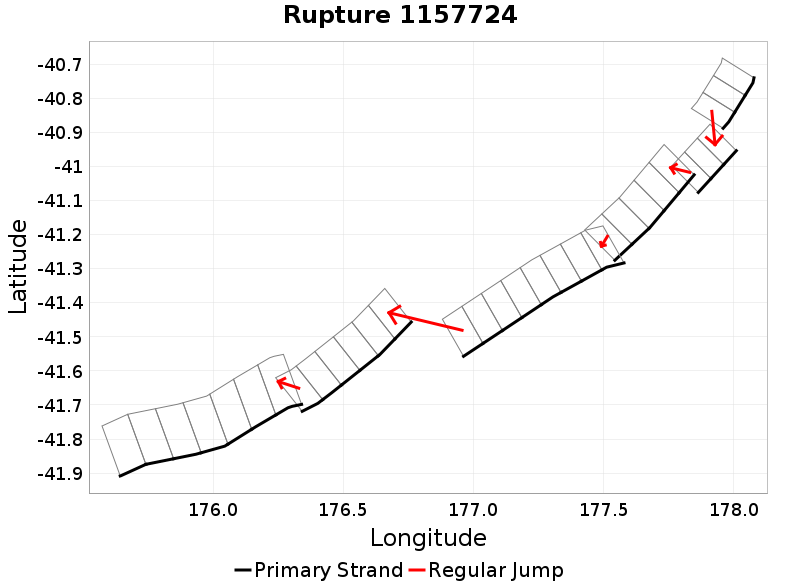

Rupture 1157724
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 244.3 | 7.5 | 32 | 6 | 4,086.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 12.8 | 20.7 | 1 | 3 | -90 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 0.0 | 0.0 | 526.5 | 0.002468031 |
Text representation:
[135:854,855,856][138:867,868,869][137:862,863,864,865,866][139:877,876,875,874,873,872,871,870][488:2763,2762,2761,2760,2759,2758][164:1012,1013,1014,1015,1016,1017,1018]
Fault section list. First section listed is North East relative to the last section.
- F16 - Central
- 854, 855, 856 (jump to 867, 4.1km)
- F17 - Central
- 867, 868, 869 (jump to 862, 2.4km)
- F16 - South
- 862, 863, 864, 865, 866 (jump to 877, 0.3km)
- F17 - South
- 877, 876, 875, 874, 873, 872, 871, 870 (jump to 2763, 12.8km)
- Pukeroro Ridge
- 2763, 2762, 2761, 2760, 2759, 2758 (jump to 1012, 1.1km)
- Glendhu Ridge
- 1012, 1013, 1014, 1015, 1016, 1017, 1018
