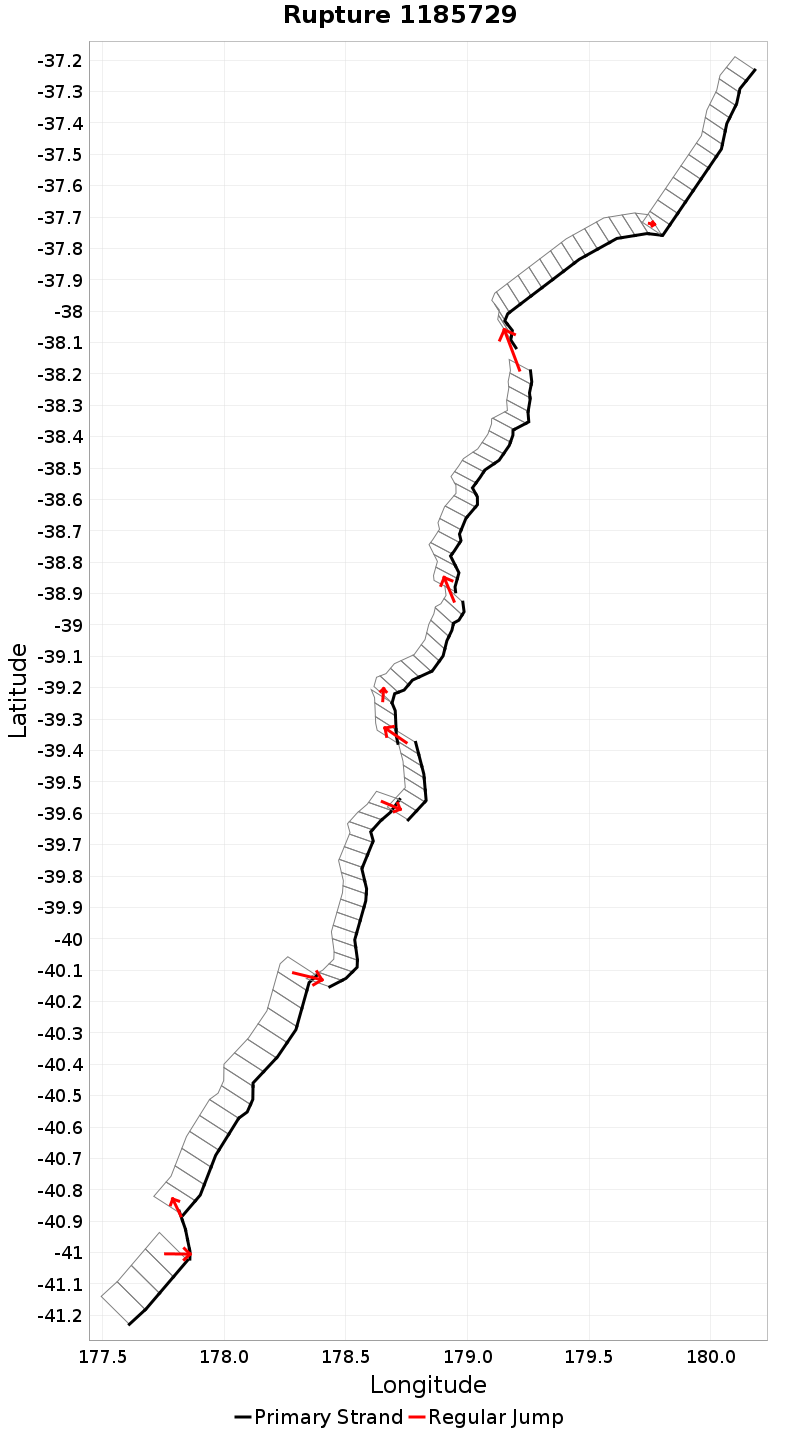

Rupture 1185729

Length (km)	Magnitude	# Subsections	# Clusters	Area (km^2)
554.9	7.7	109	10	6,074.8
Maximum Jump Distance (km)	Cumulative Jump Distance (km)	Ideal Length Ratio	Ideal Length Difference	Rake (degrees)
6.4	20.4	1.1	58.3	-91.2
Cumulative Rake Change (degrees)	# Mechanism Changes	Cumulative Azimuth Change (degrees)	BS '16-'17 Prob
180	2	1,892	1.1544291E-6

Text representation:

[137:865,864,863,862][43:402,403,404,405,406][5:33,32,31,30,29,28,27,26,25,24,23,22,21,20,19][529:2966,2965,2964,2963,2962,2961,2960,2959,2958,2957,2956,2955,2954,2953,2952,2951][452:2517,2516,2515,2514,2513,2512,2511][685:3783,3784,3785][484:2727,2726,2725,2724,2723,2722,2721,2720,2719,2718][485:2730,2731,2732,2733,2734,2735,2736,2737,2738,2739,2740,2741,2742,2743,2744,2745,2746,2747,2748][536:3004,3005,3006,3007,3008,3009,3010,3011,3012,3013,3014,3015,3016,3017,3018,3019][260:1539,1538,1537,1536,1535,1534,1533,1532,1531,1530,1529,1528,1527,1526]

Fault section list. First section listed is South West relative to the last section.

F16 - South
- 865, 864, 863, 862 (jump to 402, 0.9km)
BKSmt-West
- 402, 403, 404, 405, 406 (jump to 33, 0.4km)
Akitio Ridge
- 33, 32, 31, 30, 29, 28, 27, 26, 25, 24, 23, 22, 21, 20, 19 (jump to 2966, 3.3km)
Rock Garden - Ritchie East 1
- 2966, 2965, 2964, 2963, 2962, 2961, 2960, 2959, 2958, 2957, 2956, 2955, 2954, 2953, 2952, 2951 (jump to 2517, 3.3km)
Pakupaku Ridge East
- 2517, 2516, 2515, 2514, 2513, 2512, 2511 (jump to 3783, 3.9km)
Whaiti Ridge
- 3783, 3784, 3785 (jump to 2727, 0.1km)
Puke Knoll
- 2727, 2726, 2725, 2724, 2723, 2722, 2721, 2720, 2719, 2718 (jump to 2730, 2.1km)
Puke Ridge
- 2730, 2731, 2732, 2733, 2734, 2735, 2736, 2737, 2738, 2739, 2740, 2741, 2742, 2743, 2744, 2745, 2746, 2747, 2748 (jump to 3004, 6.4km)
Ruatoria
- 3004, 3005, 3006, 3007, 3008, 3009, 3010, 3011, 3012, 3013, 3014, 3015, 3016, 3017, 3018, 3019 (jump to 1539, 0km)
Kermadec Trench
- 1539, 1538, 1537, 1536, 1535, 1534, 1533, 1532, 1531, 1530, 1529, 1528, 1527, 1526
