Rupture 1242929
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 612.9 | 7.8 | 119 | 9 | 6,768.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.4 | 13.7 | 1.1 | 58.6 | -91.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 180 | 2 | 1,754.3 | 5.2493215E-6 |
Text representation:
[139:875,876,877,878,879,880,881][43:400,401,402,403,404,405,406][5:33,32,31,30,29,28,27,26,25,24,23,22,21,20,19][529:2966,2965,2964,2963,2962,2961,2960,2959,2958,2957,2956,2955,2954,2953,2952,2951][685:3778,3779,3780,3781,3782,3783,3784,3785][484:2727,2726,2725,2724,2723,2722,2721,2720][485:2728,2729,2730,2731,2732,2733,2734,2735,2736,2737,2738,2739,2740,2741,2742,2743,2744,2745,2746,2747,2748][536:3004,3005,3006,3007,3008,3009,3010,3011,3012,3013,3014,3015,3016,3017,3018,3019][260:1539,1538,1537,1536,1535,1534,1533,1532,1531,1530,1529,1528,1527,1526,1525,1524,1523,1522,1521,1520,1519]

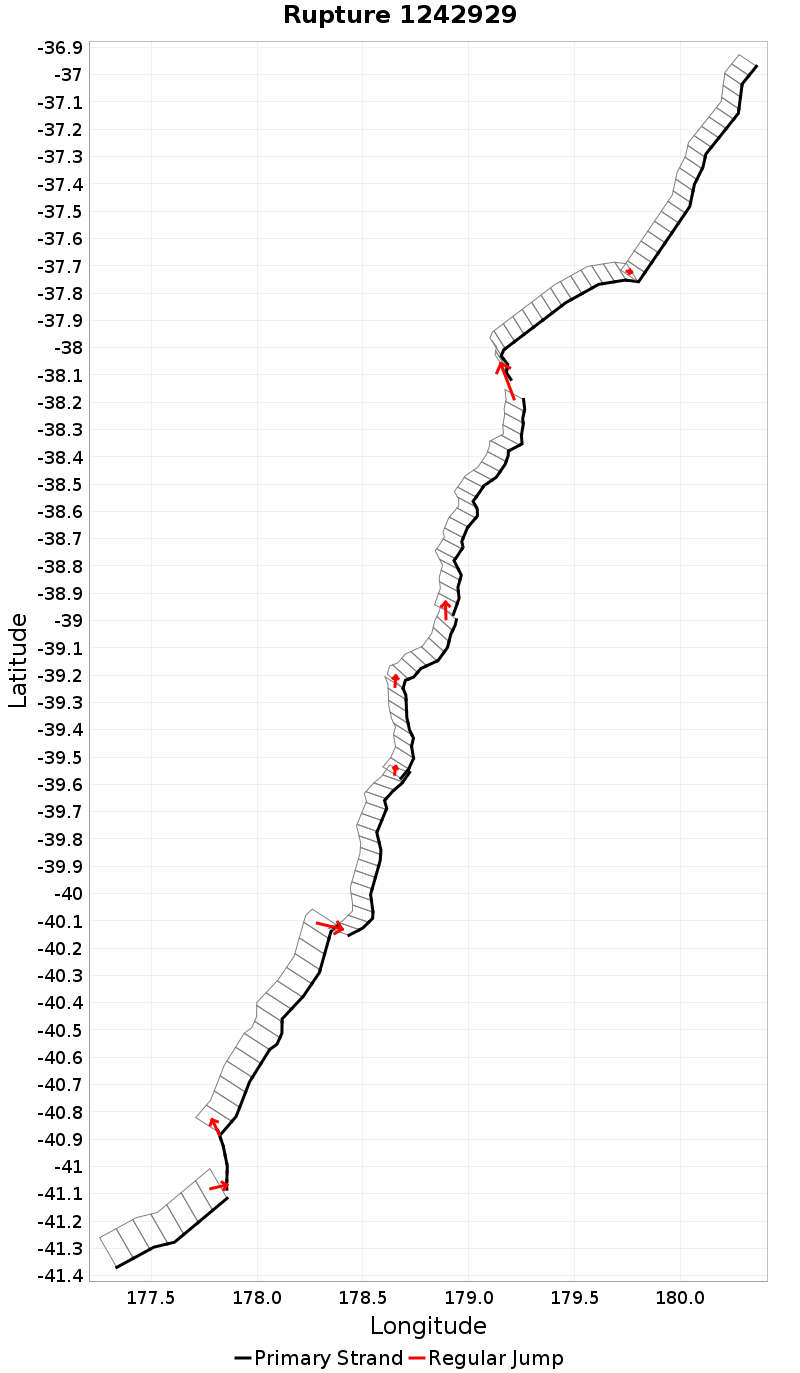

Fault section list. First section listed is South West relative to the last section.
- F17 - South
- 875, 876, 877, 878, 879, 880, 881 (jump to 400, 1.8km)
- BKSmt-West
- 400, 401, 402, 403, 404, 405, 406 (jump to 33, 0.4km)
- Akitio Ridge
- 33, 32, 31, 30, 29, 28, 27, 26, 25, 24, 23, 22, 21, 20, 19 (jump to 2966, 3.3km)
- Rock Garden - Ritchie East 1
- 2966, 2965, 2964, 2963, 2962, 2961, 2960, 2959, 2958, 2957, 2956, 2955, 2954, 2953, 2952, 2951 (jump to 3778, 0.6km)
- Whaiti Ridge
- 3778, 3779, 3780, 3781, 3782, 3783, 3784, 3785 (jump to 2727, 0.1km)
- Puke Knoll
- 2727, 2726, 2725, 2724, 2723, 2722, 2721, 2720 (jump to 2728, 1.2km)
- Puke Ridge
- 2728, 2729, 2730, 2731, 2732, 2733, 2734, 2735, 2736, 2737, 2738, 2739, 2740, 2741, 2742, 2743, 2744, 2745, 2746, 2747, 2748 (jump to 3004, 6.4km)
- Ruatoria
- 3004, 3005, 3006, 3007, 3008, 3009, 3010, 3011, 3012, 3013, 3014, 3015, 3016, 3017, 3018, 3019 (jump to 1539, 0km)
- Kermadec Trench
- 1539, 1538, 1537, 1536, 1535, 1534, 1533, 1532, 1531, 1530, 1529, 1528, 1527, 1526, 1525, 1524, 1523, 1522, 1521, 1520, 1519
