Rupture 1354756
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 395.9 | 7.7 | 52 | 7 | 6,460 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.7 | 16 | 1.1 | 36.5 | -51.2 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 90 | 2 | 715.8 | 9.418942E-6 |
Text representation:
[176:1068,1069,1070][331:1907,1908][343:1992,1991,1990,1989,1988,1987,1986,1985,1984][684:3777,3776][342:1983,1982,1981,1980,1979,1978,1977,1976,1975,1974,1973,1972][18:119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137][171:1043,1044,1045,1046,1047]

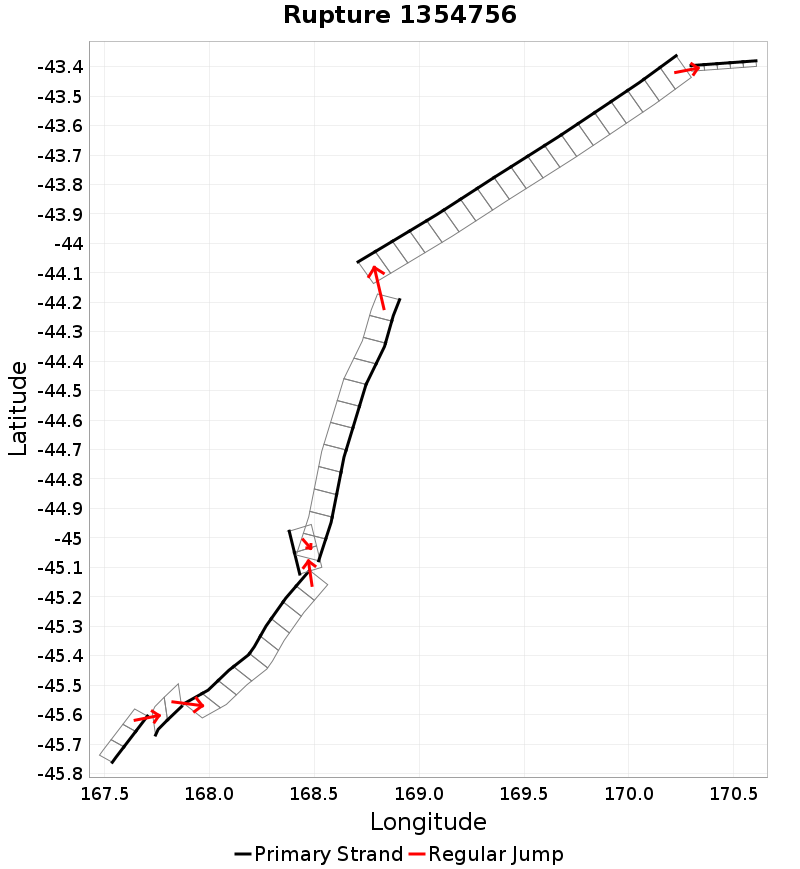

Fault section list. First section listed is South West relative to the last section.
- Hauroko: North
- 1068, 1069, 1070 (jump to 1907, 5.7km)
- McKerchar
- 1907, 1908 (jump to 1992, 1.4km)
- Moonlight South
- 1992, 1991, 1990, 1989, 1988, 1987, 1986, 1985, 1984 (jump to 3777, 1.9km)
- West Wakatipu
- 3777, 3776 (jump to 1983, 0.3km)
- Moonlight North
- 1983, 1982, 1981, 1980, 1979, 1978, 1977, 1976, 1975, 1974, 1973, 1972 (jump to 119, 5km)
- Alpine: Jacksons to Kaniere
- 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137 (jump to 1043, 1.7km)
- Gunn Glacier
- 1043, 1044, 1045, 1046, 1047
