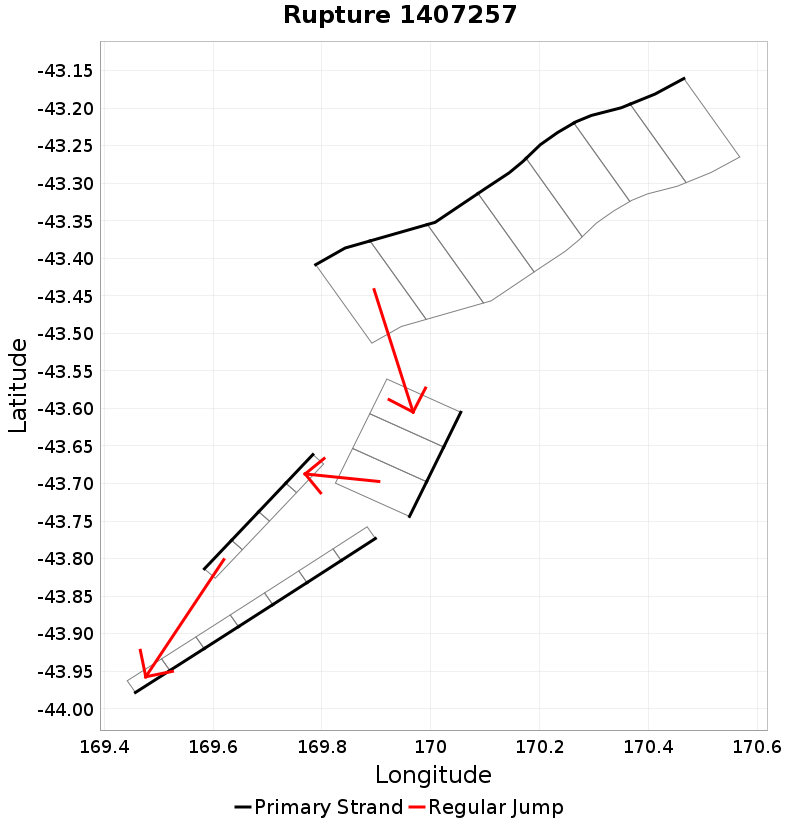

Rupture 1407257
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 144.6 | 7.3 | 21 | 4 | 2,246.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 5.8 | 14.4 | 1.2 | 22.7 | -78.9 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 350 | 0.0 | 467 | 0.014420148 |
Text representation:
[193:1147,1146,1145,1144,1143,1142,1141][332:1909,1910,1911][245:1410,1409,1408,1407][279:1663,1662,1661,1660,1659,1658,1657]
Fault section list. First section listed is North East relative to the last section.
- Hohonu South
- 1147, 1146, 1145, 1144, 1143, 1142, 1141 (jump to 1909, 5.8km)
- McKerrow - Douglas Duplex
- 1909, 1910, 1911 (jump to 1410, 2.8km)
- Karangarua
- 1410, 1409, 1408, 1407 (jump to 1663, 5.8km)
- Landsborough 2
- 1663, 1662, 1661, 1660, 1659, 1658, 1657
