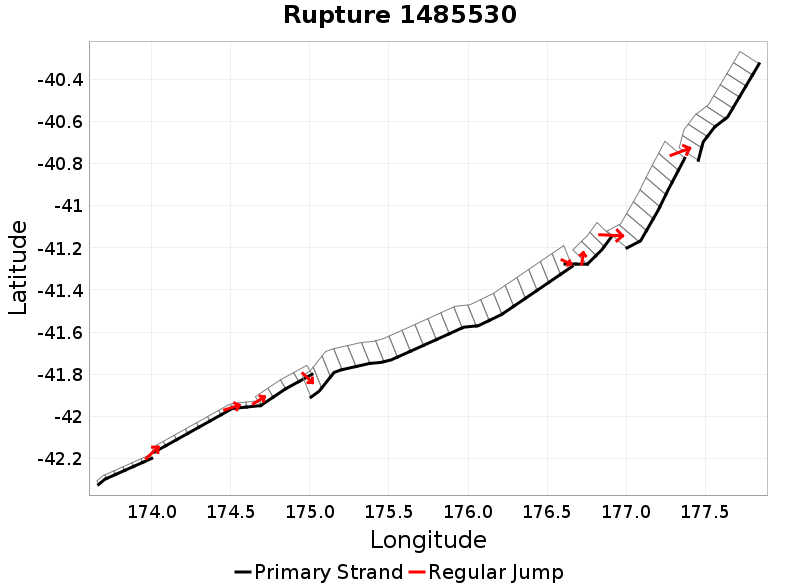

Rupture 1485530
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 431.5 | 7.7 | 62 | 9 | 6,470.5 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 3.9 | 12.9 | 1 | 18 | -70.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 250 | 4 | 830.3 | 4.6847415E-8 |
Text representation:
[205:1211,1212,1213,1214,1215,1216][207:1228,1227,1226,1225,1224,1223,1222][580:3269,3270][581:3271,3272,3273,3274][426:2358,2359,2360,2361,2362,2363,2364,2365,2366,2367,2368,2369,2370,2371,2372,2373,2374,2375,2376,2377,2378][613:3420,3421][618:3444,3443,3442][474:2651,2650,2649,2648,2647,2646,2645,2644][476:2678,2677,2676,2675,2674,2673,2672,2671,2670]
Fault section list. First section listed is South West relative to the last section.
- Hope: Seaward
- 1211, 1212, 1213, 1214, 1215, 1216 (jump to 1228, 3.5km)
- Hope: Te Rapa
- 1228, 1227, 1226, 1225, 1224, 1223, 1222 (jump to 3269, 0km)
- Te Rapa 1
- 3269, 3270 (jump to 3271, 0km)
- Te Rapa 2
- 3271, 3272, 3273, 3274 (jump to 2358, 1.4km)
- Opouawe - Uruti
- 2358, 2359, 2360, 2361, 2362, 2363, 2364, 2365, 2366, 2367, 2368, 2369, 2370, 2371, 2372, 2373, 2374, 2375, 2376, 2377, 2378 (jump to 3420, 0.4km)
- Uruti Basin
- 3420, 3421 (jump to 3444, 0km)
- Uruti Ridge 2
- 3444, 3443, 3442 (jump to 2651, 3.7km)
- Porangahau Basin
- 2651, 2650, 2649, 2648, 2647, 2646, 2645, 2644 (jump to 2678, 3.9km)
- Porangahau Ridge
- 2678, 2677, 2676, 2675, 2674, 2673, 2672, 2671, 2670
