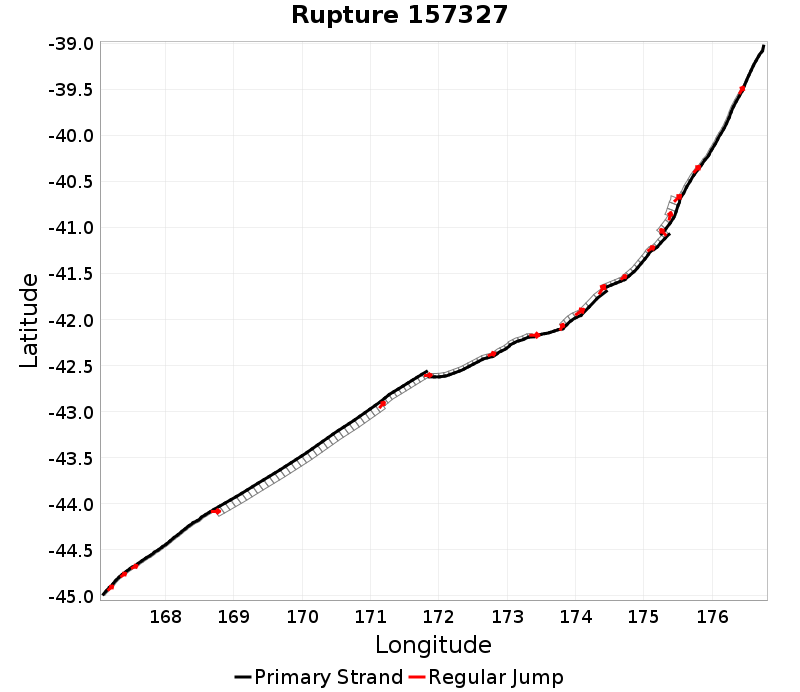

Rupture 157327
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 1,077.3 | 8.2 | 156 | 19 | 16,823.3 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 14.7 | 1 | 40 | -15.6 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 310 | 8 | 974.5 | 1.3788885E-13 |
Text representation:
[13:87,88][14:89,90,91,92][16:98,97,96][17:99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118][18:119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149][19:165,164,163,162,161,160,159,158,157,156][96:703,702,701,700,699,698,697,696,695,694,693,692,691][94:673,674,675,676,677,678,679,680,681][143:907,906,905,904,903,902][249:1431,1430,1429,1428][367:2096,2095,2094][653:3630,3629,3628,3627,3626][650:3609,3610,3611,3612,3613,3614,3615][651:3616,3617,3618,3619][680:3752,3751,3750][681:3755,3754,3753][678:3747,3746,3745,3744,3743][338:1944,1945,1946,1947,1948,1949,1950,1951,1952,1953,1954,1955,1956,1957,1958][337:1935,1936,1937,1938,1939,1940,1941,1942,1943]
Fault section list. First section listed is South West relative to the last section.
- Alpine: Caswell
- 87, 88 (jump to 89, 0km)
- Alpine: Caswell - South George
- 89, 90, 91, 92 (jump to 98, 0km)
- Alpine: George seaward
- 98, 97, 96 (jump to 99, 0km)
- Alpine: George to Jacksons
- 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118 (jump to 119, 0km)
- Alpine: Jacksons to Kaniere
- 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149 (jump to 165, 0km)
- Alpine: Kaniere to Springs Junction
- 165, 164, 163, 162, 161, 160, 159, 158, 157, 156 (jump to 703, 0.5km)
- Clarence: Southwest
- 703, 702, 701, 700, 699, 698, 697, 696, 695, 694, 693, 692, 691 (jump to 673, 0km)
- Clarence: Central
- 673, 674, 675, 676, 677, 678, 679, 680, 681 (jump to 907, 3.2km)
- Fidget
- 907, 906, 905, 904, 903, 902 (jump to 1431, 0km)
- Kekerengu 1
- 1431, 1430, 1429, 1428 (jump to 2096, 0km)
- Needles
- 2096, 2095, 2094 (jump to 3630, 4.6km)
- Wairarapa: Needles
- 3630, 3629, 3628, 3627, 3626 (jump to 3609, 0km)
- Wairarapa: 1
- 3609, 3610, 3611, 3612, 3613, 3614, 3615 (jump to 3616, 0km)
- Wairarapa: 2
- 3616, 3617, 3618, 3619 (jump to 3752, 6.3km)
- Wellington: Tararua 2
- 3752, 3751, 3750 (jump to 3755, 0km)
- Wellington: Tararua 3
- 3755, 3754, 3753 (jump to 3747, 0km)
- Wellington: Pahiatua
- 3747, 3746, 3745, 3744, 3743 (jump to 1944, 0km)
- Mohaka: South
- 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958 (jump to 1935, 0km)
- Mohaka: North
- 1935, 1936, 1937, 1938, 1939, 1940, 1941, 1942, 1943
