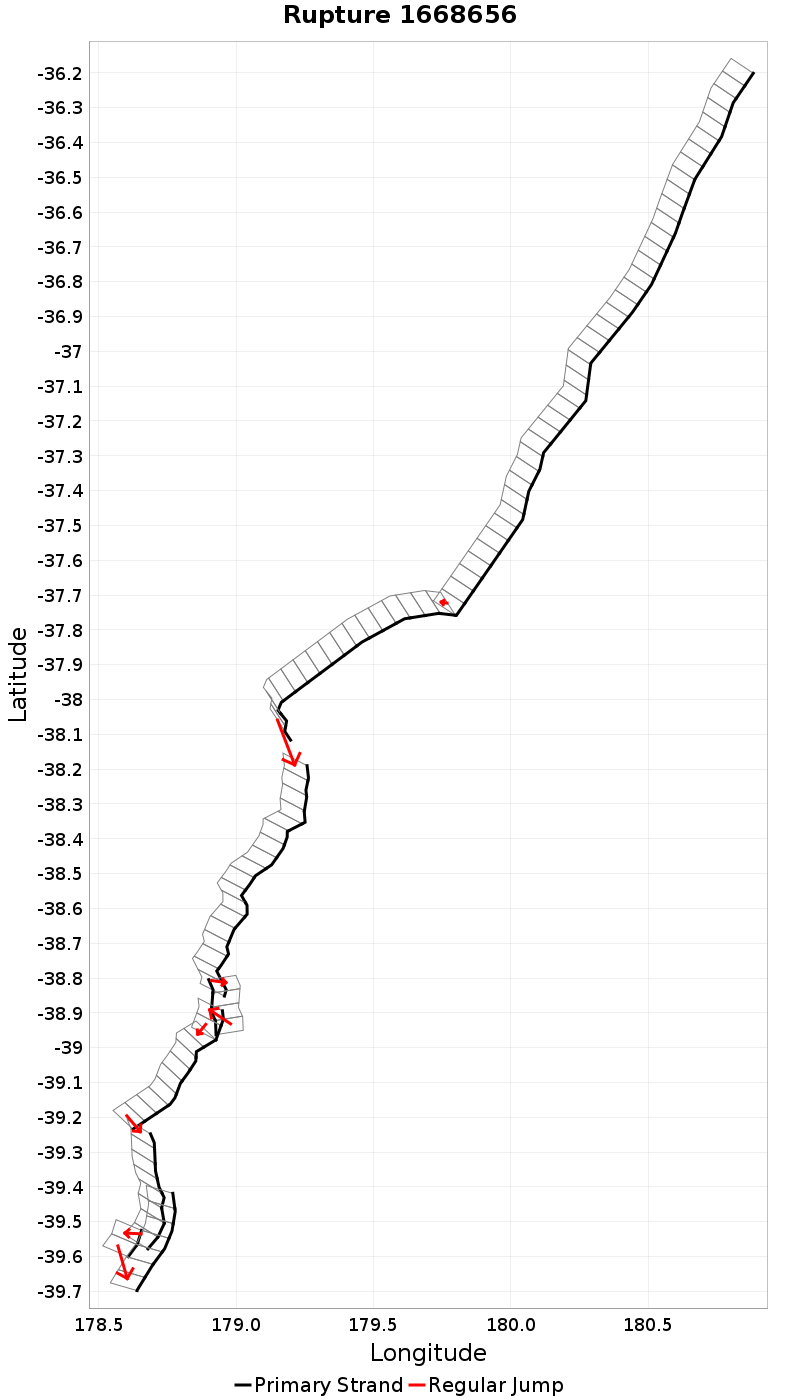

Rupture 1668656

Length (km)	Magnitude	# Subsections	# Clusters	Area (km^2)
517.4	7.6	107	9	5,173.6
Maximum Jump Distance (km)	Cumulative Jump Distance (km)	Ideal Length Ratio	Ideal Length Difference	Rake (degrees)
6.4	15	1.2	81.6	-90
Cumulative Rake Change (degrees)	# Mechanism Changes	Cumulative Azimuth Change (degrees)	BS '16-'17 Prob
0.0	0.0	1,844.9	1.8281711E-4

Text representation:

[260:1499,1500,1501,1502,1503,1504,1505,1506,1507,1508,1509,1510,1511,1512,1513,1514,1515,1516,1517,1518,1519,1520,1521,1522,1523,1524,1525,1526,1527,1528,1529,1530,1531,1532,1533,1534,1535,1536,1537,1538,1539][536:3019,3018,3017,3016,3015,3014,3013,3012,3011,3010,3009,3008,3007,3006,3005,3004][485:2748,2747,2746,2745,2744,2743,2742,2741,2740,2739,2738,2737,2736,2735,2734,2733,2732,2731][456:2544,2543,2542,2541][485:2729,2728][525:2917,2918,2919,2920,2921,2922,2923,2924,2925][685:3785,3784,3783,3782,3781,3780,3779,3778][578:3262,3263][451:2501,2502,2503,2504,2505,2506,2507]

Fault section list. First section listed is North East relative to the last section.

Kermadec Trench
- 1499, 1500, 1501, 1502, 1503, 1504, 1505, 1506, 1507, 1508, 1509, 1510, 1511, 1512, 1513, 1514, 1515, 1516, 1517, 1518, 1519, 1520, 1521, 1522, 1523, 1524, 1525, 1526, 1527, 1528, 1529, 1530, 1531, 1532, 1533, 1534, 1535, 1536, 1537, 1538, 1539 (jump to 3019, 0km)
Ruatoria
- 3019, 3018, 3017, 3016, 3015, 3014, 3013, 3012, 3011, 3010, 3009, 3008, 3007, 3006, 3005, 3004 (jump to 2748, 6.4km)
Puke Ridge
- 2748, 2747, 2746, 2745, 2744, 2743, 2742, 2741, 2740, 2739, 2738, 2737, 2736, 2735, 2734, 2733, 2732, 2731 (jump to 2544, 0.1km)
Papaku
- 2544, 2543, 2542, 2541 (jump to 2729, 0.2km)
Puke Ridge
- 2729, 2728 (jump to 2917, 0km)
Riwha
- 2917, 2918, 2919, 2920, 2921, 2922, 2923, 2924, 2925 (jump to 3785, 2.3km)
Whaiti Ridge
- 3785, 3784, 3783, 3782, 3781, 3780, 3779, 3778 (jump to 3262, 1.9km)
Te Kapu Bank East
- 3262, 3263 (jump to 2501, 4.1km)
Pakupaku Ridge
- 2501, 2502, 2503, 2504, 2505, 2506, 2507
