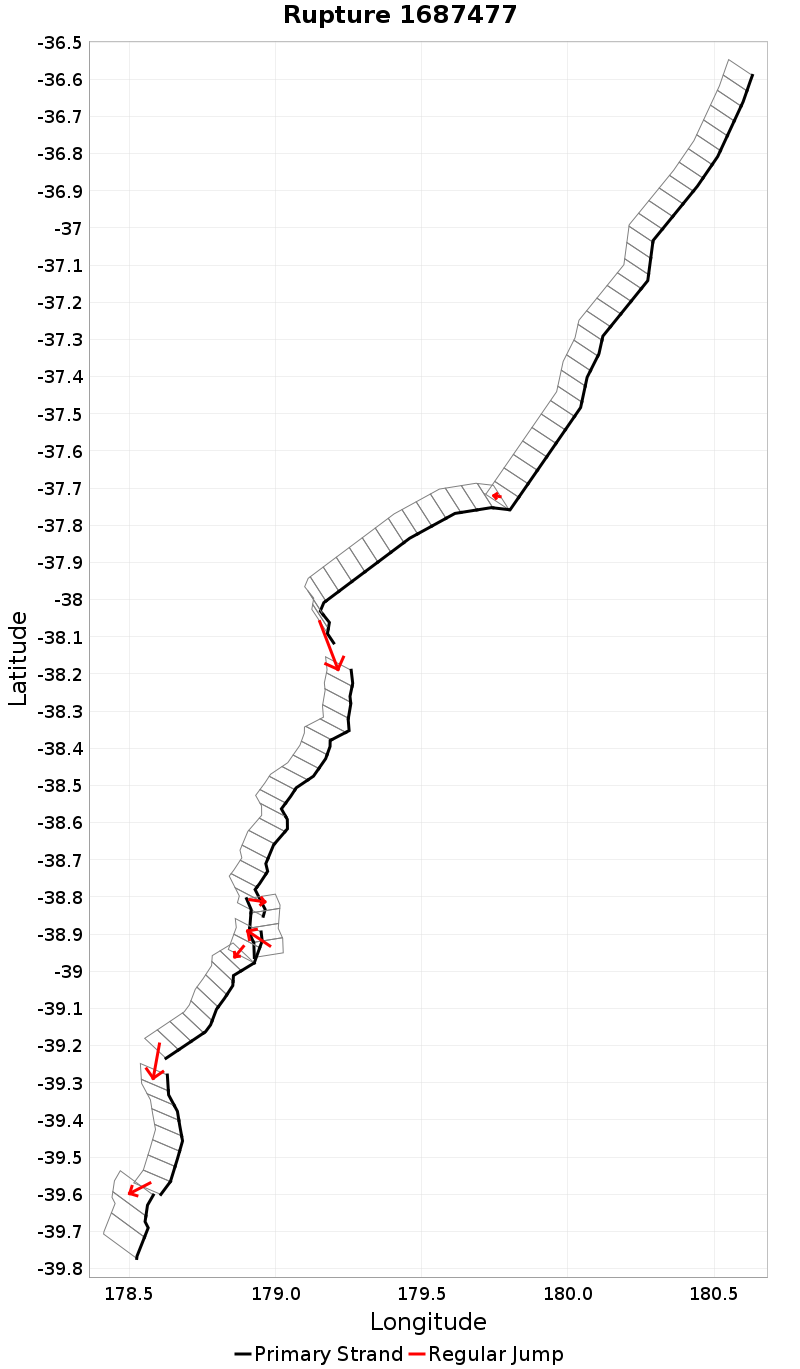

Rupture 1687477
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 443.7 | 7.6 | 91 | 8 | 4,517.6 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.4 | 12.1 | 1.1 | 44.7 | -90 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 0.0 | 0.0 | 1,509.2 | 0.0040062186 |
Text representation:
[260:1509,1510,1511,1512,1513,1514,1515,1516,1517,1518,1519,1520,1521,1522,1523,1524,1525,1526,1527,1528,1529,1530,1531,1532,1533,1534,1535,1536,1537,1538,1539][536:3019,3018,3017,3016,3015,3014,3013,3012,3011,3010,3009,3008,3007,3006,3005,3004][485:2748,2747,2746,2745,2744,2743,2742,2741,2740,2739,2738,2737,2736,2735,2734,2733,2732,2731][456:2544,2543,2542,2541][485:2729,2728][525:2917,2918,2919,2920,2921,2922,2923,2924,2925][578:3256,3257,3258,3259,3260,3261,3262,3263][528:2935,2936,2937]
Fault section list. First section listed is North East relative to the last section.
- Kermadec Trench
- 1509, 1510, 1511, 1512, 1513, 1514, 1515, 1516, 1517, 1518, 1519, 1520, 1521, 1522, 1523, 1524, 1525, 1526, 1527, 1528, 1529, 1530, 1531, 1532, 1533, 1534, 1535, 1536, 1537, 1538, 1539 (jump to 3019, 0km)
- Ruatoria
- 3019, 3018, 3017, 3016, 3015, 3014, 3013, 3012, 3011, 3010, 3009, 3008, 3007, 3006, 3005, 3004 (jump to 2748, 6.4km)
- Puke Ridge
- 2748, 2747, 2746, 2745, 2744, 2743, 2742, 2741, 2740, 2739, 2738, 2737, 2736, 2735, 2734, 2733, 2732, 2731 (jump to 2544, 0.1km)
- Papaku
- 2544, 2543, 2542, 2541 (jump to 2729, 0.2km)
- Puke Ridge
- 2729, 2728 (jump to 2917, 0km)
- Riwha
- 2917, 2918, 2919, 2920, 2921, 2922, 2923, 2924, 2925 (jump to 3256, 4.6km)
- Te Kapu Bank East
- 3256, 3257, 3258, 3259, 3260, 3261, 3262, 3263 (jump to 2935, 0.9km)
- Rock Garden - Ritchie East
- 2935, 2936, 2937
