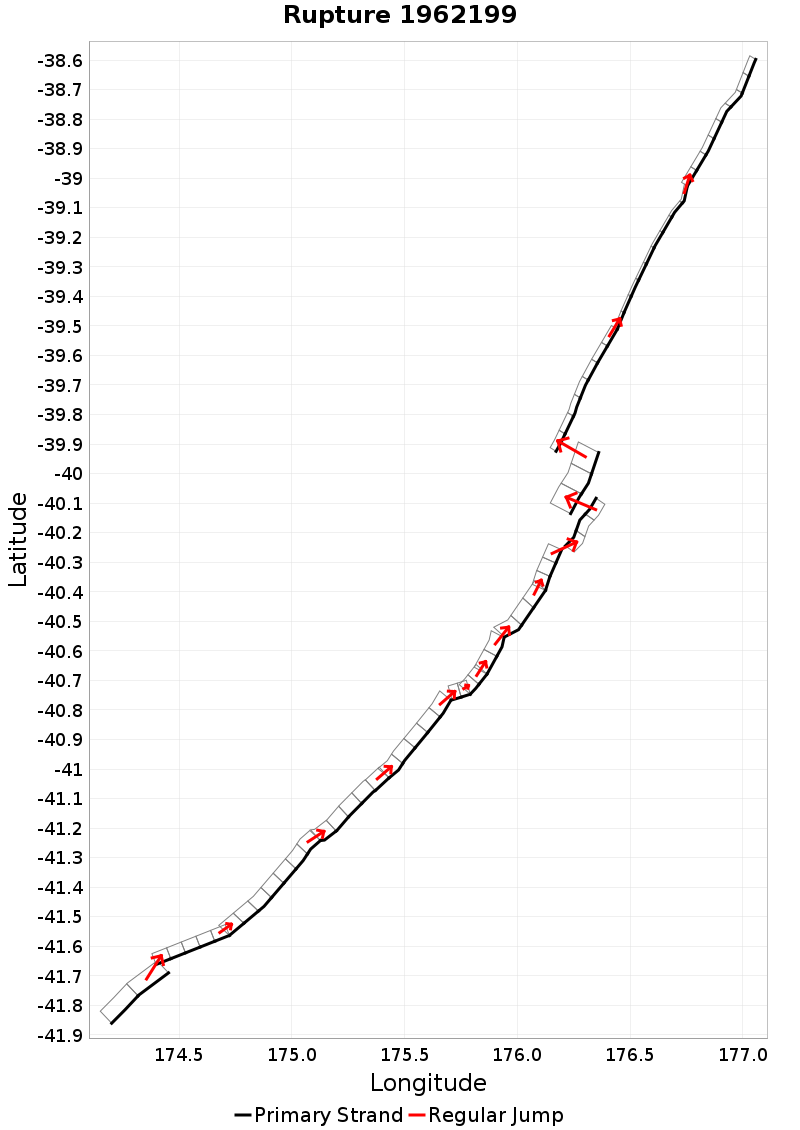

Rupture 1962199
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 465.9 | 7.8 | 66 | 15 | 7,791.4 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 8.4 | 20 | 1.1 | 29.6 | -14.5 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 260 | 4 | 844.2 | 6.282227E-9 |
Text representation:
[367:2095,2094][653:3630,3629,3628,3627,3626][650:3609,3610,3611,3612,3613,3614,3615][651:3616,3617,3618,3619,3620][652:3621,3622,3623,3624,3625][113:761,762][12:84,83][11:82,81][309:1811,1812,1813][627:3471,3472,3473][97:704,705,706][535:2999,3000,3001][338:1952,1953,1954,1955,1956,1957,1958][337:1935,1936,1937,1938,1939,1940,1941,1942,1943][636:3526,3527,3528,3529,3530,3531,3532,3533]
Fault section list. First section listed is South West relative to the last section.
- Needles
- 2095, 2094 (jump to 3630, 4.6km)
- Wairarapa: Needles
- 3630, 3629, 3628, 3627, 3626 (jump to 3609, 0km)
- Wairarapa: 1
- 3609, 3610, 3611, 3612, 3613, 3614, 3615 (jump to 3616, 0km)
- Wairarapa: 2
- 3616, 3617, 3618, 3619, 3620 (jump to 3621, 0km)
- Wairarapa: 3
- 3621, 3622, 3623, 3624, 3625 (jump to 761, 0.5km)
- Dreyers Rock
- 761, 762 (jump to 84, 0km)
- Alfredton South
- 84, 83 (jump to 82, 0km)
- Alfredton North
- 82, 81 (jump to 1811, 0.3km)
- Makuri - Waewaepa
- 1811, 1812, 1813 (jump to 3471, 0km)
- Waewaepa
- 3471, 3472, 3473 (jump to 704, 2km)
- Clear Hills - Waikopiro
- 704, 705, 706 (jump to 2999, 4.3km)
- Ruataniwha
- 2999, 3000, 3001 (jump to 1952, 8.4km)
- Mohaka: South
- 1952, 1953, 1954, 1955, 1956, 1957, 1958 (jump to 1935, 0km)
- Mohaka: North
- 1935, 1936, 1937, 1938, 1939, 1940, 1941, 1942, 1943 (jump to 3526, 0km)
- Waimana: South
- 3526, 3527, 3528, 3529, 3530, 3531, 3532, 3533
