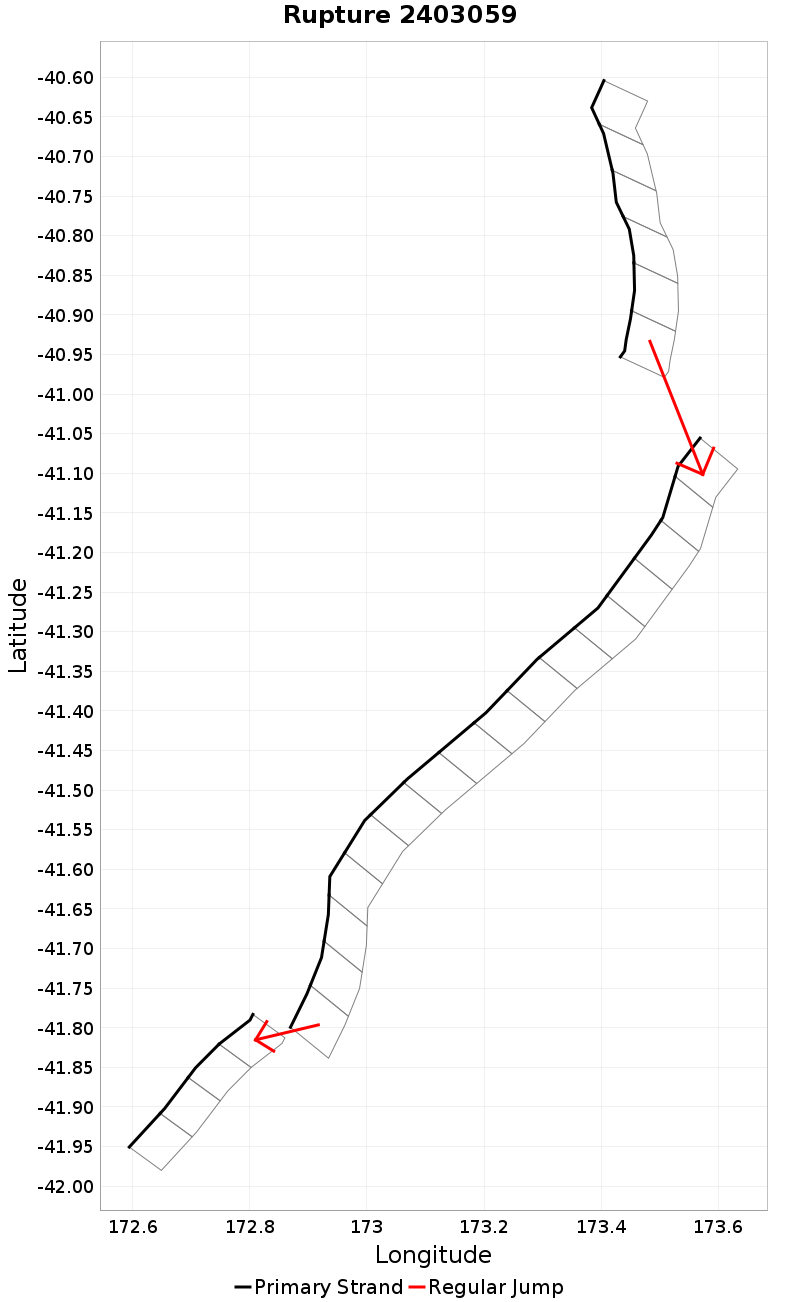

Rupture 2403059
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 170.8 | 7.3 | 26 | 3 | 2,350.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 14.3 | 19.4 | 1 | 6.4 | -90 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 0.0 | 0.0 | 309 | 0.060844444 |
Text representation:
[565:3193,3192,3191,3190,3189,3188][690:3811,3812,3813,3814,3815,3816,3817,3818,3819,3820,3821,3822,3823,3824,3825,3826][149:934,933,932,931]
Fault section list. First section listed is North East relative to the last section.
- Surville
- 3193, 3192, 3191, 3190, 3189, 3188 (jump to 3811, 14.3km)
- Whangamoa
- 3811, 3812, 3813, 3814, 3815, 3816, 3817, 3818, 3819, 3820, 3821, 3822, 3823, 3824, 3825, 3826 (jump to 934, 5.2km)
- Flaxmore - Waimea - Tahunanui
- 934, 933, 932, 931
