Rupture 2410127
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 699.1 | 8 | 100 | 8 | 10,243.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 14.3 | 1 | 30.6 | -38.7 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 210 | 3 | 691.8 | 1.4583933E-6 |
Text representation:
[571:3233,3232,3231,3230,3229,3228,3227,3226,3225,3224][293:1725,1724,1723,1722][195:1167][17:108,109,110,111,112,113,114,115,116,117,118][18:119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149][19:165,164,163,162,161,160,159,158,157,156,155,154,153,152,151,150][24:190,191,192,193,194,195,196,197,198,199,200,201,202][690:3826,3825,3824,3823,3822,3821,3820,3819,3818,3817,3816,3815,3814,3813]

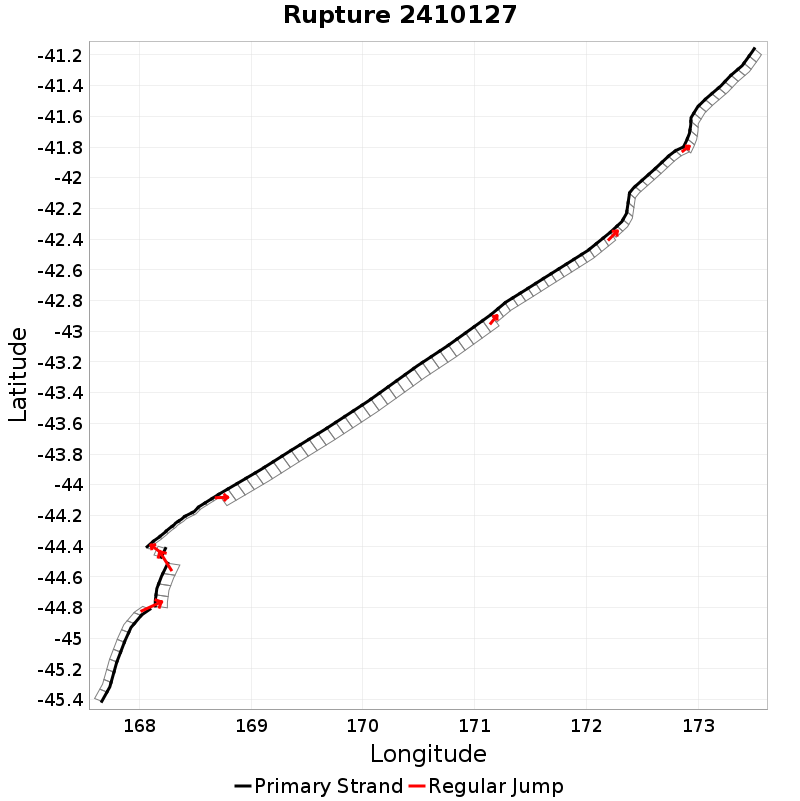

Fault section list. First section listed is South West relative to the last section.
- Te Anau
- 3233, 3232, 3231, 3230, 3229, 3228, 3227, 3226, 3225, 3224 (jump to 1725, 4.4km)
- Livingstone
- 1725, 1724, 1723, 1722 (jump to 1167, 6.3km)
- Hollyford
- 1167 (jump to 108, 3.6km)
- Alpine: George to Jacksons
- 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118 (jump to 119, 0km)
- Alpine: Jacksons to Kaniere
- 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149 (jump to 165, 0km)
- Alpine: Kaniere to Springs Junction
- 165, 164, 163, 162, 161, 160, 159, 158, 157, 156, 155, 154, 153, 152, 151, 150 (jump to 190, 0km)
- Alpine: Springs Junction to Tophouse
- 190, 191, 192, 193, 194, 195, 196, 197, 198, 199, 200, 201, 202 (jump to 3826, 0km)
- Whangamoa
- 3826, 3825, 3824, 3823, 3822, 3821, 3820, 3819, 3818, 3817, 3816, 3815, 3814, 3813
